Chemical pump BT600-2Jelectricperistalticstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- electric
- Technology
- peristaltic
- Mobility
- stationary, mobile
- Domain
- industrial, laboratory
- Applications
- control
- Other characteristics
- high-flow, analytical
- Flow
Max.: 3 l/min
(0.79252 us gal/min)Min.: 1.6 l/min
(0.42268 us gal/min)- Power
100 W
(0.14 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Length
280 mm
(11 in)- Width
200 mm
(7.87 in)- Height
180 mm
(7.09 in)- Weight
3.8 kg, 4.2 kg, 4.6 kg
(8.38 lb, 9.26 lb, 10.14 lb)
Description

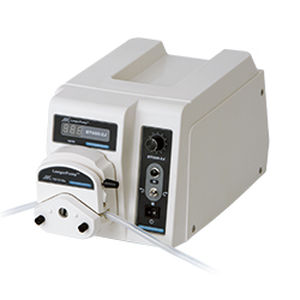

Medium-High Flow Rate Peristaltic Pump BT600-2J could be loaded with YZ1515X, YZ2515X, YZII15, YZII25 and DG15-24. The speed could be controlled through control panel, external control interface or RS485 interface. The running parameters are saved automatically. And the pump could be operated easily
Applications：
Suitable for laboratory, analytical instrument and industry
Product Instruction：
Medium-High Flow Rate Peristaltic Pump BT600-2J could be loaded with YZ1515X, YZII15, YZ2515X, YZII25, and DG15-24. The pump provides flow rates from 0.07mL/min to 3000 mL/min. The speed could be controlled through control panel, external control interface or RS485 interface. The running parameters are saved automatically. And the pump could be operated easily.
CE certified product based on request.
Main Functions and Features
- Applicable pump heads:YZ1515X, YZ2515X, YZII15, YZII25
- Prime button for fast filling and emptying
- The pump could be controlled manually through control panel or automatically through external control interface.
- Memory function: Storing the running parameters automatically
- Equipped with Longer Dispensing Controller for filling function
- Communication function: the pump could be controlled by computer through RS485 interface.
- Indoor use only
