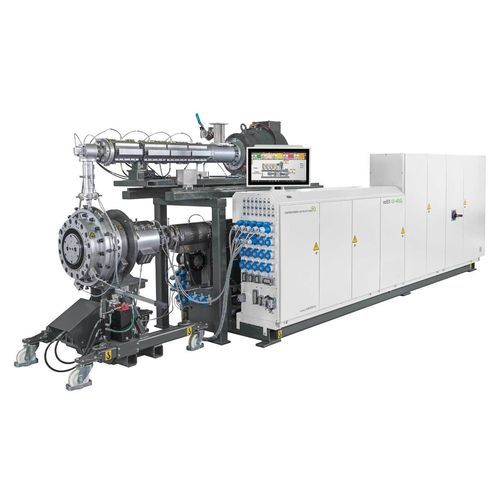

Single screw extruder GL

compactfor energy savinglow energy consumption

Overview
The GL (gearless) extruder series provides an alternative drive concept. A frequency-controlled, high-torque AC motor drives the screw with the screw and the motor output shaft aligned in one line. The high-torque AC motor maintains high efficiency across operating ranges, including partial-load operation. Because GL drives operate without gears, energy losses associated with gear transmissions (e.g. flange loss, heating) are eliminated.

Your Advantages

• Minimal maintenance effort (no motor air filter servicing, no gearbox oil change), reducing operating costs
• Low noise and vibration levels in operation
• Improved drive-chain efficiency thanks to high-torque motor technology
• Smaller footprint with good accessibility

Our Offer

• Water-cooled, high-torque AC motor for reduced energy consumption
• Fewer drive components
• Compact design

Co-extrusion solutions

• Extruder frame on rolls
• Extruder frame on rails
• Parallel arrangement or positioning at various angles
• 'Piggyback' version — placed directly above the main extruder

BCtouch UX control

• Supports OPC-UA protocol
• Supports Industry 4.0 functions
• Control mounted directly on the extruder cabinet or on a mobile stand
• Individually customizable user interface: adapted to each machine operator (language, icons, screen layout)
• Up to 7 extruders can be integrated into the control

Technical specifications

• Series: GL series (gearless single-screw extruders)
• Drive concept: frequency-controlled, high-torque AC motor; screw and motor output shaft in one line
• Gearless operation: no gearbox, elimination of gear transmission energy losses (e.g. flange loss, heating)
• Motor cooling: water-cooled high-torque AC motor
• Energy efficiency: high efficiency even under partial load
• Maintenance: significantly reduced maintenance (no gearbox oil change, no motor air filter servicing)
• Acoustics & vibration: low noise and vibration operation
• Mechanical design: reduced number of drive components, compact footprint for easy access
• Co-extrusion options: frames on rolls or rails, parallel or angled arrangements, piggyback mounting
• Control & connectivity: BCtouch UX with OPC-UA support, Industry 4.0 functions, customizable UI, integration of up to 7 extruders
• Application type: single-screw extrusion (suitable for co-extrusion configurations)
