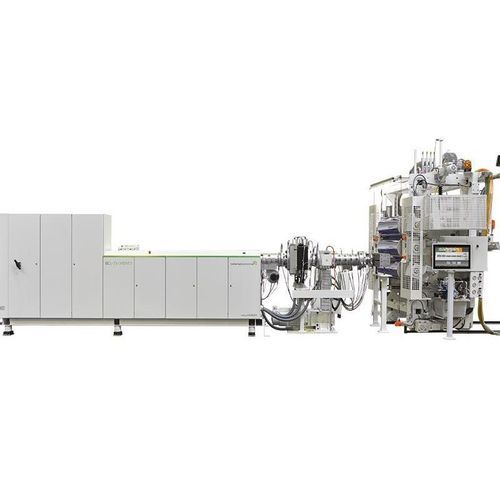

Single screw extruder

sheetfor PPfor PET

Product description
The standardized High-Speed extruder series is engineered to deliver an optimal volume/shaft-speed ratio, meeting demands for ever-higher throughput while maintaining excellent product quality. It is particularly suited to thermoforming sheet extrusion and is established in this field. Matching co-extruders are available for producing functional layers in multilayer applications.

Advantages

• 15–25% energy savings compared with conventional systems
• Shorter changeover times due to reduced purge volumes, leading to increased production uptime and lower material consumption
• Improved end-product quality

Equipment

• Machine sizes: 75-34 and 75-40 mm; co-extruder sizes: 35-30 mm and 45-32 mm
• Throughput examples: PP 30–1,500 kg/h; PS 35–1,750 kg/h; PET 30–1,200 kg/h
• Significantly reduced residence times
• Compact, easy-to-maintain units
• Multiple specific solutions available, e.g. dual venting
• Rear screw extraction
• Wear protection options for abrasive materials

Co-extrusion with uniEX extruders

• Compact design
• Wide process window
• High throughputs with gentle melt treatment
• Available sizes: 35, 45 and 60 mm
• Output ranges depending on material: approx. 50–500 kg/h
• Flexible application through modular design

BC-Touch UX control

• Supports OPC-UA protocol
• Industry 4.0 ready
• Control unit mounted directly on the extruder switch cabinet or on a mobile stand
• Customizable user interface: adapted to each operator (language, icons, screen layout)
• Up to 7 extruders can be integrated into the control

Technical specifications

• Main machine sizes: 75-34, 75-40 mm
• Co-extruder sizes: 35-30 mm and 45-32 mm
• Throughput examples: PP 30–1,500 kg/h; PS 35–1,750 kg/h; PET 30–1,200 kg/h
• uniEX co-extruder sizes: 35, 45, 60 mm
• uniEX output range: approx. 50–500 kg/h (material dependent)
• Energy efficiency: 15–25% savings versus conventional systems
• Reduced residence times in the system
• Compact, service-friendly design
• Specific options: dual venting, rear screw extraction, wear protection solutions for abrasive materials
• BC-Touch UX: OPC-UA, Industry 4.0 ready, cabinet or mobile mounting, customizable UI, integration of up to 7 extruders
