Twin-screw coextrusion line twinEX

3-layerscompactprofile

Overview
The use of regranulate requires co-extrusion solutions. Depending on the customer's requirements, there are almost infinite extruder combinations for co-extrusion of PVC profiles or pipes. Most often, the parallel twinEX extruder is used as the main extruder in combination with a conEX NG conical extruder as the co-extruder.

Your Advantages

• Single control and switch cabinet for both extruders
• Central cable solution between profile tool and extruder control cabinet
• Easy and precise extruder adjustment for different profile and 3-layer pipe tool connections
• Smallest footprint
• Multiple extruder combinations for high co-ex performance

Space saver solution
The Space Saver set-up requires a smaller footprint. The flexible frame enables easy pivoting and tilting to position the co-extruder for different profile tools.

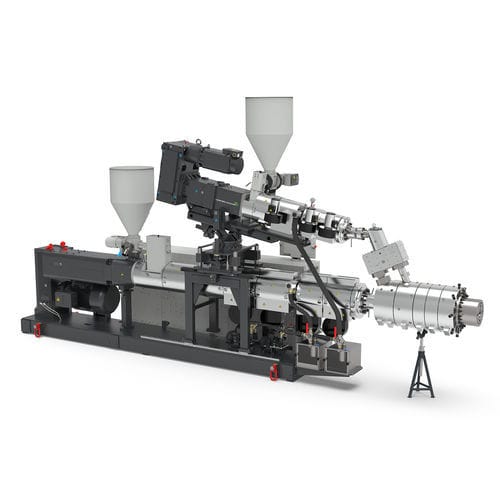

Piggyback solution
The piggyback solution saves more than space. Beyond space savings it offers cost advantages, user-friendliness and high energy efficiency. Thanks to the co-extruder’s flexible frame design, this configuration provides maximum die-connection flexibility, making die changes easy. The extruders share a common control cabinet, reducing cost and simplifying operation.

Stand alone solution
The stand-alone solution is ideal for retrofitting a co-extruder. It is a cost-effective alternative and can be configured for individual use.

Technical characteristics / specifications

• Typical extruder combination: parallel twinEX as main extruder + conEX NG conical extruder as co-extruder
• Designed for co-extrusion of PVC profiles and pipes and for use of regranulate
• Common control cabinet for both extruders (single control)
• Central cable solution between profile tool and extruder control cabinet
• Flexible coextruder frame enabling pivoting and tilting for various tool arrangements
• Easy and precise adjustment for different profile and 3-layer pipe tool connections
• Piggyback: smallest footprint, cost advantage, user-friendliness, high energy efficiency, flexible die connection for easy die changes
• Stand-alone: suitable for retrofitting a co-extruder, cost-effective and individually usable
• Multiple possible extruder combinations to achieve high co-ex performance
