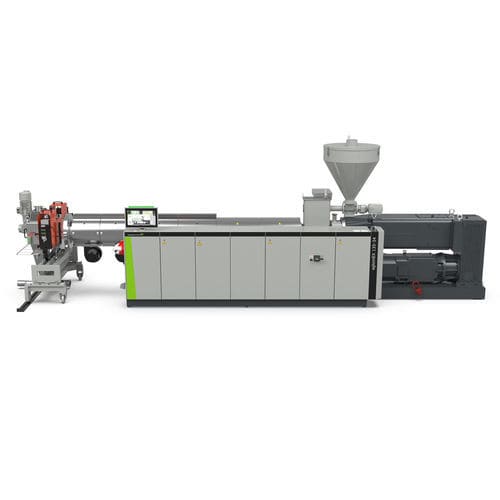

Wear-resistant extrusion twin-screw aglomEX

for plastic

Overview
Energy-efficient twin-screw extruder series designed for PVC pelletizing (dryblend and recycling) with options for EMS shear gap adjustment and comprehensive downstream integration.

Product description
PVC pellets produced by aglomEX serve as feedstock for blow molding, injection molding and extrusion. The series combines twin-screw technology with dedicated pelletizing heads to ensure consistent bulk density, low dust content and uniform homogeneity. For other thermoplastics, compatible single-screw lines can be integrated with water-ring, underwater or strand pelletizers.

Your Advantages

• Wide material and formulation compatibility (PVC-U, PVC-P and regrind)
• Customized equipment and process expertise with direct customer support
• Remote access and automatic process control via BC-Touch UX
• Capacity range up to 3,500 kg/h (standard lines) and up to 4,500 kg/h with EMS
• EMS technology for flexible shear-gap adjustment to handle recipe variations
• Complete pelletizing lines including granulate cooling and downstream systems

Our Offer (general)

• Pelletizing extruders in multiple sizes, up to 135 mm screw diameter
• L/D ratios: 28:1 (standard) and 34:1 (aglomEX)
• Outputs (examples): PVC-U dryblend up to 1,600 kg/h; PVC-P dryblend up to 2,200 kg/h
• Individual development of extrusion lines, downstream systems, training and service
• Worldwide service network and remote diagnostics
• Customer trials in our technical center

aglomEX (twin screw extruder series)
The aglomEX series is optimized for dryblend and recycling PVC pelletizing, offering designs tailored to processing requirements and recipe stability.

aglomEX - Your advantages

• Optimized concept for PVC-U and PVC-P with limited recipe variation
• Customized processing units for dryblend or regrind
• 34 L/D versions with up to 20% increased throughput
• Optional semi-automatic screen changers for high-quality regrind pellets
• Screen changer installation without additional adapters to reduce thermal damage risks
• Dosing screw geometry and pelletizing heads adapted to application needs
• Wear protection options: molybdenum, tungsten carbide, chrome plating, nitride surfaces

aglomEX - Our offer (sizes / performance)

• Machine sizes: 93–135 mm diameter
• L/D ratios: 28:1 and 34:1
• Output examples: PVC-U dryblend up to 1,600 kg/h; PVC-P dryblend up to 1,500–2,200 kg/h
• Output PVC-U regrind up to 1,200 kg/h
• Machines are individually adapted to customer requirements

aglomEX EMS (electromotive shear gap adjustment)
EMS-equipped extruders provide in-process shear-gap adjustment for greater flexibility and stable product quality across recipe variations.

aglomEX EMS - Your advantages

• Up to 20% higher throughput in the newly developed series
• High process flexibility due to electromotive shear-gap control
• Ability to process a wide range of recipes with a single screw set
• Improved product quality via effective degassing and solids separation

aglomEX EMS - Our offer (sizes / performance)

• Machine sizes: 114–135 mm diameter (EMS range)
• L/D ratio: typically 28:1
• Output examples: PVC-U dryblend up to 4,500 kg/h; PVC-P dryblend up to 2,200 kg/h
• Double-barrel degassing with twin solids separator and powerful vacuum pump
• Adjustable processing technology for soft and rigid PVC pelletizing

BC-Touch UX control

• OPC-UA support and Industry 4.0 functions
• Control mounted on extruder cabinet or mobile stand
• Customizable user interface (language, icons, screen layout)
• Integration of up to 7 extruders in one control system

Technical specifications

• Product family / model name: aglomEX
• Machine sizes: 93–135 mm diameter (standard series)
• L/D ratios: 28:1 and 34:1 (34:1 for aglomEX; EMS typically 28:1)
• Standard outputs: PVC-U dryblend up to 1,600 kg/h; PVC-P dryblend up to 1,500 kg/h; PVC-U regrind up to 1,200 kg/h
• EMS outputs: PVC-U dryblend up to 4,500 kg/h; PVC-P dryblend up to 2,200 kg/h
• Special features: EMS shear-gap adjustment, double-barrel degassing, twin solids separator, powerful vacuum pump, semi-automatic screen changer option
• Wear protection: molybdenum, tungsten carbide, chrome plating, nitride surfaces
• Application: PVC pelletizing (dryblend and recycling) and integration with alternative pelletizing systems for other thermoplastics
