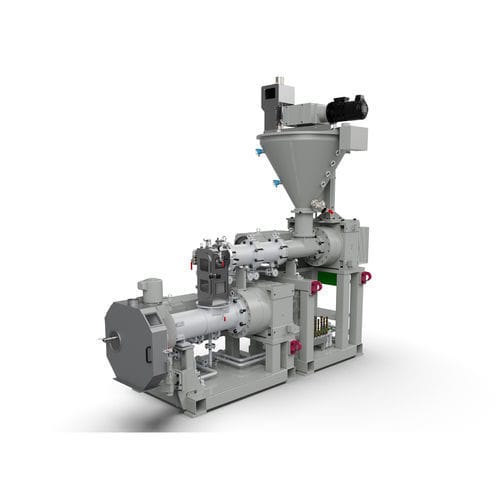

Single screw extruder

pelletizingfor PVCfor EVA

Overview
The planetary roller extruder is designed for feeding calender and calender-coating lines for PVC sheet production and, in two-stage versions, for pelletizing. Single-stage and two-stage configurations are available with a flexible mechanical design adjustable to different formulations. Toothed components are manufactured with high precision to interlock like gear elements, minimizing material buildup and enabling short change-over times.

Your Advantages

• Precise melt temperature control
• Self-cleaning design to reduce residues
• Narrow, controlled residence time distribution
• Balanced ratio of shear to heat transfer
• Short formula change-over times due to continuously interlocking toothed components

Our Offer

• Single-stage and two-stage planetary roller extruders
• Available sizes: 140, 170, 200, 250 and 350/355 mm
• Typical outputs: PVC 450–4,000 kg/h; ABS 400–2,200 kg/h; EVA 500–2,200 kg/h
• Flexible mechanical design adaptable to different formulations and materials

BCtouch UX control

• Supports OPC-UA protocol
• Industry 4.0 ready
• Control mounted on the extruder cabinet or on a mobile stand
• Customizable user interface: language, icons and screen layout per operator
• Integration of up to 7 extruders into one control system

Characteristics / technical specifications

• Product type: Planetary roller extruder (single-stage and two-stage)
• Main applications: calender feeding and calender coating for PVC sheet; pelletizing (two-stage)
• Available diameters: 140, 170, 200, 250, 350/355 mm
• Output ranges (typical, depending on formulation and material): PVC 450–4,000 kg/h; ABS 400–2,200 kg/h; EVA 500–2,200 kg/h
• Design features: toothed components manufactured to high precision for gear-like interlocking
• Process features: precise melt temperature control; self-cleaning; narrow residence time; balanced shear vs. heat transfer; short change-over times
• Control: BCtouch UX with OPC-UA and Industry 4.0 functions, integration up to 7 extruders
