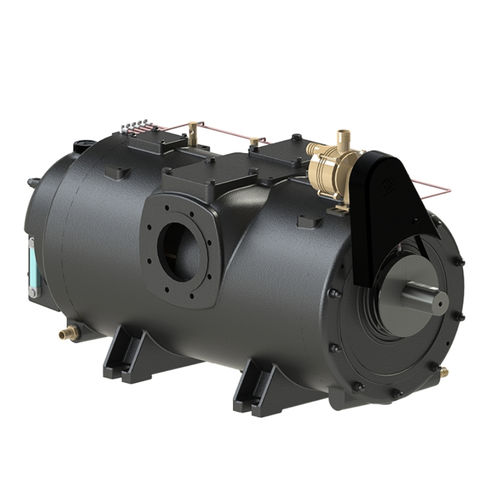

Rotary vane vacuum pump WSM series

oil-lubricatedsingle-stagewater-cooled

WSM – THE GREEDY The WSM pump series features liquid cooled housing and flanges enabling continuous operation in vacuum and in pressure modes. The WSM design assures maximum cooling thanks to the wide cooling liquid chambers and to the high flow capacity of the integrated water pump. The WSM oversized robust construction makes this pump ideal for heavy duty applications where long time continuous non-stop operation is required (i.e. oil fields, combined vacuum trucks, industrial applications, sucking of muds, semi-solid muds and stones). The WPT series is the ideal choice for professional users and contractors. STANDARD FEATURES: Long Life Blades, 60 l/min integrated cooling pump, 4 or 6 points automatic lubrication by copper pipes. AVAILABLE MODELS: WSM 2700/WSM 3300 AIR FLOW: from 2700 m3/h to 3300 m3/h (45000 - 56000 l/min, 1590 - 1978 cfm)
