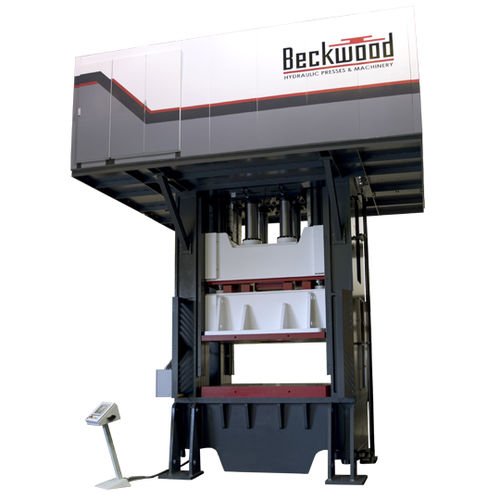

Hydraulic press drawingdeep drawing4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- drawing, deep drawing
- Structure
- 4-column
- Other characteristics
- custom, high-pressure, triple-action
- Applications
- for industrial applications, for the aerospace industry
- Force
Max.: 800 tf
Min.: 80 tf
Description
Custom Features:
8-point square gib-guidance system minimizes lateral movement under load
80-800 ton draw ram bolster
10-300 ton clamp ram bolster with fixed stops
10-150 ton bed cushion/part ejector featuring dynamic control through four travel zones
Light curtains guard the front and rear openings of the press; bolt-on expanded metal guarding cover side openings
Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler
Crown mounted power system and reservoir
Calculated Ram Speeds:
– Draw Ram: Fast Approach 6-64 IPM; Pressing 3-32 IPM; Return 6-67 IPM
– Clamp Ram: Fast Approach 13-131 IPM; Pressing 13-131 IPM; Return 26-268 IPM
– Bed Cushion: Extend 89 IPM; Retract 10-160 IPM
