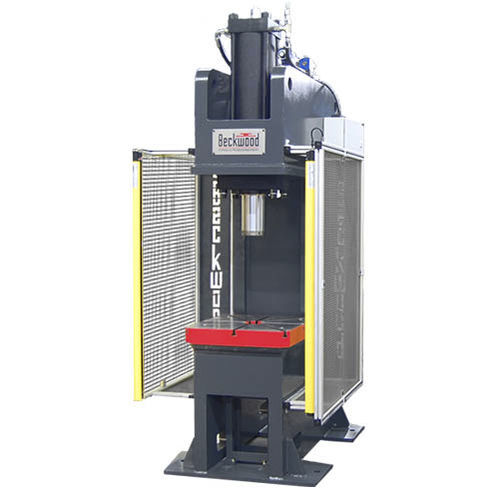

Hydraulic press

assemblyfor the automotive industryexpanded metal

Frame Style - - C-Frame - Special Features - - • Oversized oil cooling system • Exclusive Regeneration Circuit for fast approach and retract modes - Intended Use - - Used to assemble parts for the automotive industry Custom Features: 13” throat distance Stripping Capacity: 10 tons Thru-hole machined in bed for part clearance Cylinder rod end machined to accommodate customer tooling Frame mounted power system and reservoir Kidney loop filter/cooler circuit with oversized thermostatically controlled fan motor Light curtains guarding the front opening of the press; bolt on expanded metal guarding on the sides and rear of the press Oversized oil cooling system minimizes risk for overheating Calculated Ram Speeds: Fast Approach 204 IPM; Pressing 5-40 IPM; Return 183 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
