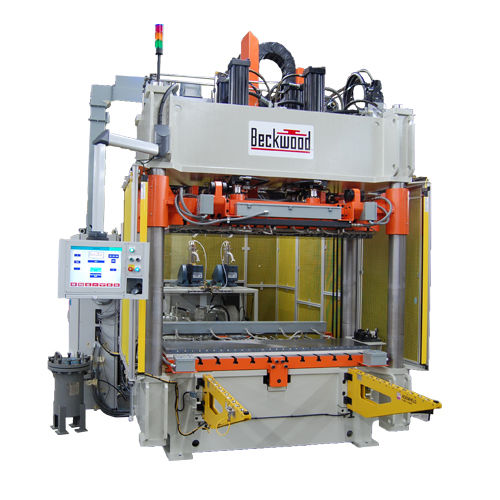

Hydraulic press

electricfor moldingassembly

Application - - Compression Molding; Spotting/Tryout - Frame Style - - 4-Post - Special Features - - • Heated/Cooled Platens • Pneumatic Dwell System • Booking Ram • Bed Shuttle Custom Features: Gun drilled channels in the platens create a serpentine flow for rapid cooling Booking ram with 90-degree booking capability Hydraulically actuated bed shuttle for loading and unloading Pneumatic dwell system allows the primary electric motor & pump to be turned ‘off’ during prolonged dwell periods for increased energy efficiency and reduced noise Calculated Ram Speeds: 160 IPM Approach; 40 IPM Pressing; 53 IPM Return Kidney loop filter/cooler circuit with thermostatically-controlled electric water/oil heat exchanger Light curtain guards the front & rear openings; bolt-on expanded metal guards cover side openings Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
