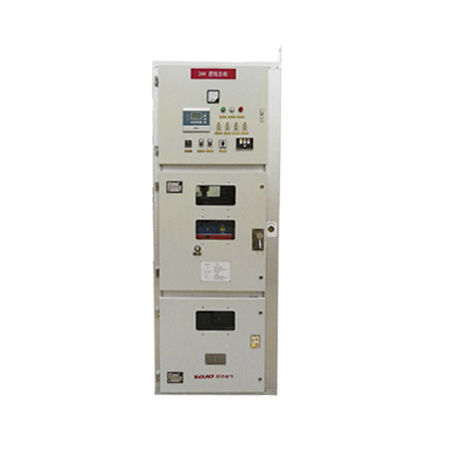

Insulated switchgear XGN66vacuumair-insulated
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- insulated
- Configuration
- air-insulated, vacuum
- Primary current
Min.: 620 A
Max.: 4,000 A
- VAC
12 kV
Description
Overview
XGN66-12 Metal-enclosed Switchgear is suitable for 3.6～12kV single busbar and single busbar with bypass or double busbar system to receive and distributue electricity.
Description
Adapt ZN28A-10 type vacuum breaker.
Product Features
The busbar compartment, Cable compartment and relay compartment are divide by metal boards.
there is an earthing busbar inside the cabinet, which can ensure reliable connection to earth.
"Five-prevent" function.
Parameters
Rated Frequency 50Hz
Rated Short-time Withstand Current 20～40kA，4S
Rated Peak Withstand Current 50～100kA
1min Power Frequency Withstand Voltage 42kV
Lightning Impulse Withstand Voltage 75kV
Protection Level IP4X
