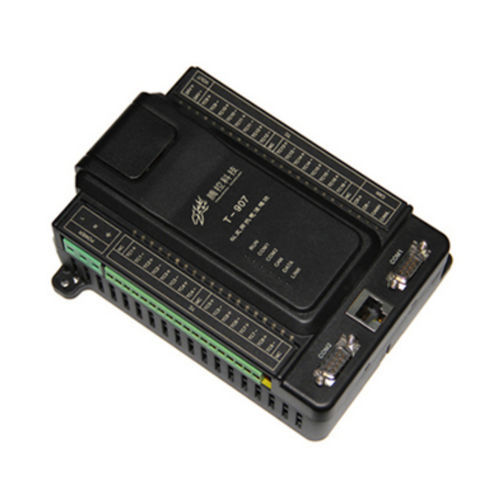

Box PLC T-907DIN railwith integrated I/ORS485
Add to favorites
Compare this product
Characteristics
- Type
- box, DIN rail
- Input/output
- with integrated I/O
- Network
- RS485, RS232, Modbus RTU, Modbus TCP, Ethernet
Description
Operating Temperature Range –40~85 degrees celsius
16 channel thermocouple input, 16bit, open detected
1 port 10M/100M Ethernet, MODBUS TCP / ENET IEC870-5-104
Two RS485 or RS232 ports , MOBUS RTU , 300-38400bps
AC(85-265V) or DC 24V power supplies
169x134x63 (mm) size
Dimension
169 x 134 x 63 mm (W x H x D)
Weight
0.5 Kg
Mount
Standard rail or bolts
Working Temperature
From -40ºC to 85 ºC
I/O Feature
Built-in analog inputs
16 Thermocouple input
In support of the thermocouple type
:K.J.T.E.R.S.B.N
Input signal
Thermocouple
I/O state indicators
44 pcs.
Indicators
Overflow:flash,disconnection:off,normal:on
Protection
Link-loss detecting
Measurement Range
Exceeds the Minimum:-2730
Exceeds the Maximum:30000
Disconnection:32767
Conversion cycle
10ms
