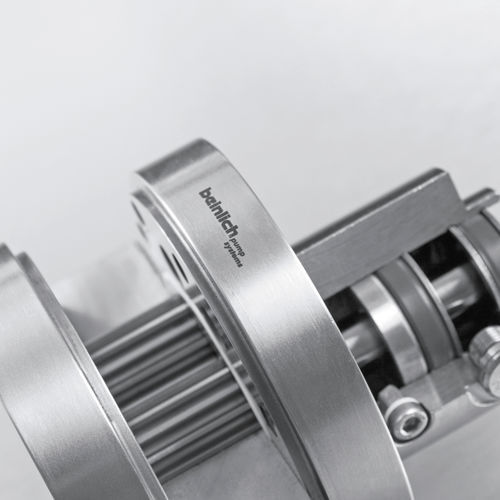

External-gear pump ZPDA

for resinsnormal primingstationary

ZPDA external gear pump ZPDA pumps are specifically designed for start-stop dosings. The low pulsation gear design provides constant flow with very rapid pressure build-up. Internal clearances based on fluid viscosities are held within a few microns to insure the highest efficiency possible, even at high differential pressures up to 200 bar. Depending on the application, DLC coatings are available for the wetted parts to provide additional corrosive resistance and abrasive particle resistance as well. Direct mounting of a VSE flow meter on the rear plate is also available for closed loop control. Performance data Displacements 0.1 up to 26.0 cc/rev Speed 1 up to 200 rpm Viscosity 1 up to 1,000,000 mPas Special designs are available for deviating temperatures. Operating pressure max. 200 bar (depending on rotation speed and viscosity) Application areas Dosing of media without fillers: polyurethanes, isocyanate, polyol, catalyst, additives, silicones, fuels, adhesives, oils, hotmelt, paints
