Gear pumping unit

self-primingstationaryindustrial

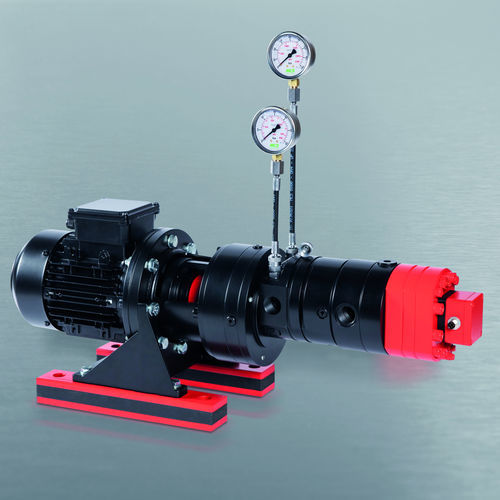

Delivery pump units Beinlich self-priming delivery pump units consist of external gear pumps which are made from standard materials 0.7050 (housing) / 1.8550 (shafts and gears) and FKM (static seals). They are especially suitable for the low pressure range and can convey almost every low viscosity media as well as uncritical media without fillers which are compatible to the materials used. The engine power of the 4 pole asynchronous three-phase motor is sufficiently assessed for achieving differential pressures of up to 40 bar. Additionally, delivery pump units are available within a short delivery time, thanks to standardised units. Performance data Displacements 0.1 up to 72.0 cc/rev Speed 150 up to 1,750 rpm ((by using a frequency converter) Viscosity 1 up to 800 mPas Pre pressure: Max. 10 bar by using a rotary shaft seal Max. 20 bar by using a magnetic coupling Application areas Filling plants Printing machines Paint industry Filter technology Generator construction Cooling machines Mechanical engineering Hydraulics Oil processing Tank facility construction Compressors Vacuum plants Machine tools
