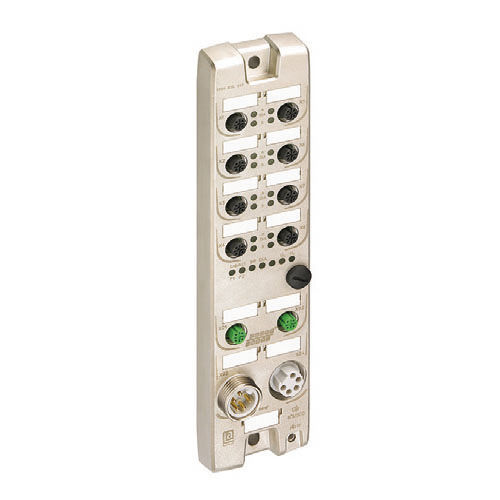

Digital I/O module 0980 ESL 803

ProfiNetnetwork8-I/O

Order No. :934 692-003 Type :0980 ESL 803-PNET 8DI/8DO-M12-R Description :PROFINET device with 8 digital input and 8 digital output channels, Zinc diecast housing, M12 sockets for network ports and I/O slots, M12 -D coded 4 pole LAN-Ports, 7/8" power supply, 5 poles Availability :available NoteThe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingmetallic Product characteristicsVibration résistance, Oil résistance, Résistance to flying welding sparks, Electromagnetic résistance Classification Belden classI/O Modules with Digital Inputs and Outputs (DI/DO) Belden brandLumberg-Automation Mechanical data Weight605 g Dimensions (W x H x D)59.6 mm x 261.4 mm x 17.6 mm Environmental conditions Environmental température-10°C ...60 °C Degree of protection (IP), mountedIP67 Materials Housing material / Molded bodyZinc diecasting, nickel-plated Approvals ApprovalsUL, CSA RoHS 2002/95/EG compilantyes Bus System Fieldbus SystemPROFINETI0 Bus ConnectionM12, D coded Number of contacts4
