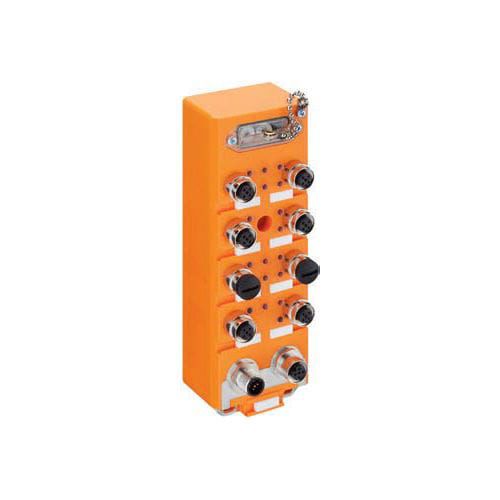

Digital I/O module 0930 CSL 108

CANopen16-I/O16 digital inputs

Order No.:54154 Type:0930 CSL 108 Description:CANopen® device with 16 digital inputs (p-switching) to connect standard sensors, combined FIXCON/M12 socket, rotary switches for address setting, M12 bus connection Availability:available DiagnosticsThe diagnostic message provided by the CANopen® modules of the brand Lumberg Automation™, consists of an additional input byte, which is appended to the standard input process data. In form of a group diagnostics for each module an overload, actuator low voltage and actuator short circuit is being reported. In addition, the corresponding LEDs simplify the troubleshooting. NoteThe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingorange Product characteristicsOil résistance, EMC résistance, Vibration résistance Classification Belden classI/O Modules with Digital Inputs (DI) Belden brandLumberg-Automation Mechanical data Weight570 g Dimensions (W x H x D)60 mm x 179 mm x 51.3 mm Environmental conditions Environmental température0°C... 60 °C Degree of protection (IP), mountedIP67 Materials Housing material / Molded bodyPUR Bus System Fieldbus SystemCANopen® Bus ConnectionM12 AutobaudYes Transmission ratemax. 1000 kbit/s Address range1 dec.... 99 dec. Rotary address switches1 dec.... 99 dec.
