Order No.:10919
Type:0910 ASL 403

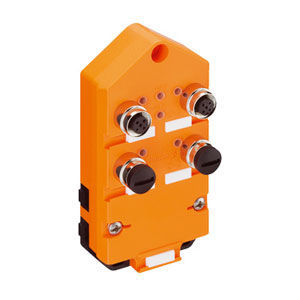

Description:AS-Interface flat cable module with 4 digital outputs to connect standard actuators, combined FIXCON/M12 socket
Availability:available
Diagnostics Indicators for channel status, power supply and actuator supply
Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration.
Color of housing orange
Product characteristics Oil resistance, EMC resistance, Vibration resistance
Classification
Belden class I/O Modules with Digital Outputs (DO)
Belden brand Lumberg-Automation
Mechanical data
Weight 200 g
Dimensions (W x H x D) 60 mm x 118 mm x 35.8 mm
Environmental conditions
Environmental temperature -25 ºC ... 80 ºC
Degree of protection (IP), mounted IP67
Materials
Housing material / Molded body PUR
Approvals
Approvals UL
Bus system
Fieldbus system AS-Interface
Bus Connection ASI flat cable connection
Device Indentification AS-Interface profile: 8.0; I/O configuration: 8 hex; ID code: 0 hex
Support A/B addressing No
Supply Fieldbus Interface
Supply Fieldbus Interface AS-Interface net
Voltage range (Supply Fieldbus Interface) 26.5 - 31.6 V DC
Current consumption (Supply Fieldbus Interface) max. 75 mA
Reverse polarity protection (Supply Fieldbus
Interface)
Yes
Function Indicator (Supply Fieldbus Interface) LED green
