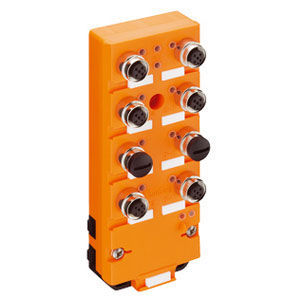

Digital I/O module 0910 ASL 438

AS-Interfacefor sensors4 digital inputs

Order No.:107971 Type:0910 ASL 438 Description:AS-Interface flat cable module with 4 digital inputs for 2-wire or 3-wire sensors and 4 digital outputs to connect standard actuators, M12 socket, infrared interface for the addressing Availability:available Diagnostics Peripheral faults such as short circuit or overload are reported as group diagnostics to the master. In addition, there is a diagnostic LED on each slave. Note This AS-Interface module conforms to AS-i specification 3.0 and can only be operated with a master, which also supports 3.0. The input and output channels are connected in pairs on the signal side. This allows a bigger variety of connections (see pin assignment). When connecting a dual-channel sensor/actuator to input/output socket 1 or 3, the sockets 2 and 4 may not be connected with another sensor/actuator due to the cross-wiring of the inputs/outputs. The use of these products in aggressive media should be checked in individual cases. Subject to technical changes! Color of housing orange Product characteristics Oil resistance, EMC resistance, Vibration resistance Classification Belden class I/O Modules with Digital Inputs and Outputs (DI/DO) Belden brand Lumberg-Automation Mechanical data Weight 300 g Dimensions (W x H x D) 60 mm x 152 mm x 35.8 mm Environmental conditions Environmental temperature -25 ºC ... 80 ºC Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PUR Approvals Approvals UL pending Bus system Fieldbus system AS-Interface Version 3.0 Bus Connection ASI flat cable connection Device Indentification AS-Interface profile: S-7.A.7; I/O configuration: 7 hex; ID code: A hex; ID2 code: 7 hex
