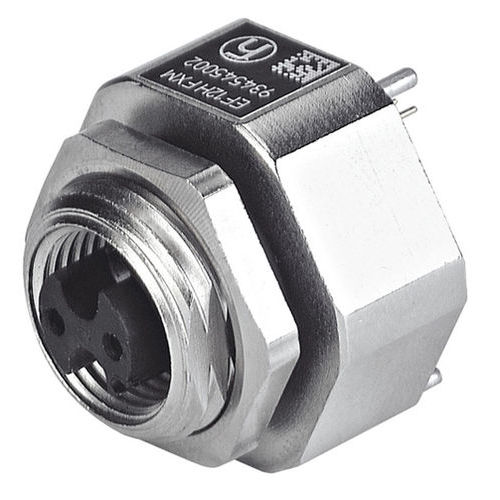

Fiber optic transceiver EF12H series
for sensorsmultimodedata

fiber optic transceiver
fiber optic transceiver
Add to favorites
Compare this product


Characteristics

Network
for fiber optics
Applications
for sensors
Other characteristics
multimode, data

Description

100Base-FX Transceiver microFX for MultiMode application 1310 nm, 125 MBit/s with metal housing, acc. to IEEE 802.3, with FDDI PMD standard; incl. protection cap and mounting screw Type:EF12H FXM Order: No.934 545-002 Number of contacts:2 (optical) + 2 (electrical) Availability:not availableDiagnostics Signal Detect, TX disable led out via pin Standard ISO/IEC 9314-3, housing: in support of IEC 61076-2-101 (Ed. 1) Housing Color silver Technical data Rated voltage AC/DC 60 V Rated current 4 A Wave length 1310 nm Output level -20 dBm to -40 dBm Input Level -31 dBm to -14 dBm Data rate 125 Mbit/s Data interface PECL Power supply DC 3.3 V Current consumption DC 295 mA Material Contact material Cu Zn Contact surface material Au Contact bearer material PA Housing material Cu Zn/Ni O-Ring Viton Environmental conditions Protection class (IEC 60529) IP 65 / IP 67 (mated) Pollution severity 3 Temperature range -40ºC to +85ºC
