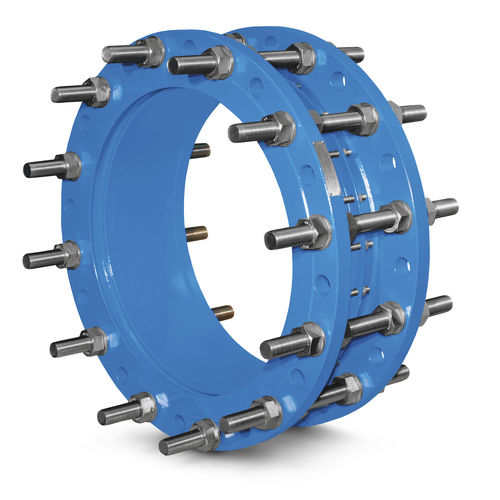

PAS 10
The UNIJOINT PAS10 offers a perfect balance between technical features and maximum value for money compared to most other designs available in the market. Equipped with two flanges and one follower end-ring, this design offers optimal gasket control with the separate stud bolts applying pressure to the gasket independently of the tie-bars. This allows for a reduction in the number of tie-bars, while still maintaining a fully restrained secure configuration.
Fast, efficient installation and dismantling are synonymous with the PAS10 dismantling joint. Without tie-bars the PAS10 works as a limited expansion joint absorbing noises and vibrations.
Flange norm/drilling: ISO2531/ EN1092 Raised Face – Reduced Bore (RF-RB)
Body: EN-GJS-500-7, S235EN10025 and/or S275EN10025
Bolts, nuts & washers: Hot Dip Galvanized or Stainless Steel AISI316-A4
Tie-Bars: Mild Steel Zinc Electroplated or Hot Dip Galvanized or Stainless Steel AISI316-A4
Gasket: EPDM [EN681] or NBR
CHARACTERISTICS
Manufacturing and design – In accordance with AWWA-C219 guaranteeing an absolutely leakproof product.
High quality materials – Selected for strength and adaptability.
Proven design – In many prestigious and challenging projects worldwide.
Essential aid – For the installation and dismantling of pipe sections, valves and pumps.
