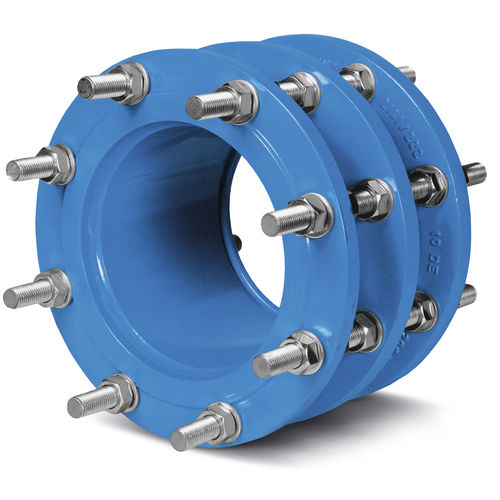

Dismantling joint PAS 20

PAS 20 Equipped with three flanges, the PAS20 is the perfect solution for all standard and non-standard applications. The 100% continuous tie-bars ensure complete restraint and a leak free operation. The standard longitudinal adjustment of +/- 25mm and its sturdy design offer perfect support during the installation and removal of valves. Besides the standard nominal sizes, the PAS20 is available in super large diameters and pressure ratings even exceeding 100bar to customer requirements. As a cost-effective alternative for duplex stainless steel, usually prescribed for desalination applications, the PAS20 can be equipped with internal ebonite rubber lining. Flange norm/drilling: ISO2531/ EN1092 Raised Face – Reduced Bore (RF-RB) Body: EN-GJS-500-7, and/or S235EN10025 Tie-Bars: Mild Steel Zinc Electroplated or Hot Dip Galvanized or Stainless Steel AISI316-A4 Gasket: EPDM [EN681] or NBR Coating: non-toxic fusion bonded epoxy (FBE) powder, Resicoat RT9000 R4 epoxy (RAL5015), 305μ Options: different face-to-face lengths, greater adjustability, greater DN/PN, special steelgrades & coatings available on request CHARACTERISTICS Manufacturing and design – In accordance with AWWA-C219 guaranteeing an absolutely leakproof product. High quality materials – Selected for strength and adaptability. Proven design – In many prestigious and challenging projects worldwide. Essential aid – For the installation and dismantling of pipe sections, valves and pumps.
