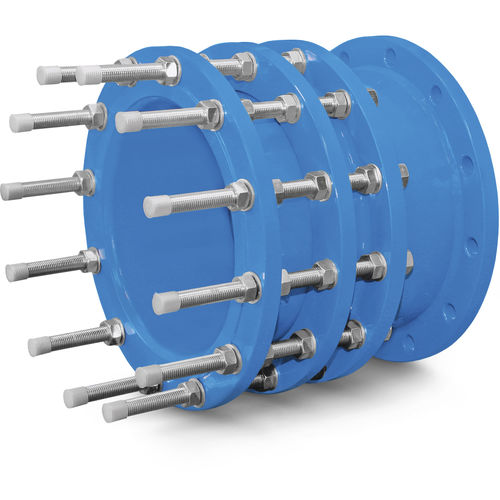

Dismantling joint PAS 30

PAS 30 The UNIJOINT PAS30 with four flanges and 100% tie-bars is the ultimate solution for challenging installations. The additional flange results in an increased construction length which makes it possible to slide the threaded tie-bars between both end flanges during installation and removal. This feature allows sideway insertion making the PAS30 ideal for situations where the connection flanges are fixed and the overall space just corresponds to the construction length e.g. where pipes protrude from a wall. It also enables pre-assembly with a valve prior to installation and maintenance on a valve without removing the dismantling joint. Flange norm/drilling: ISO2531/ EN1092 Raised Face – Reduced Bore (RF-RB) Body: S235EN10025 Tie-Bars: Mild Steel Zinc Electroplated or Hot Dip Galvanized or Stainless Steel AISI316-A4 Gasket: EPDM [EN681] or NBR Coating: non-toxic fusion bonded epoxy (FBE) powder, Resicoat RT9000 R4 epoxy (RAL5015), 305μ Options: different face-to-face lengths, greater adjustability, greater DN/PN, special steelgrades & coatings available on request CHARACTERISTICS Manufacturing and design – In accordance with AWWA-C219 guaranteeing an absolutely leakproof product. High quality materials – Selected for strength and adaptability. Proven design – In many prestigious and challenging projects worldwide. Essential aid – For the installation and dismantling of pipe sections, valves and pumps.
