UV curing system

industrialair-cooledin-line

Product description

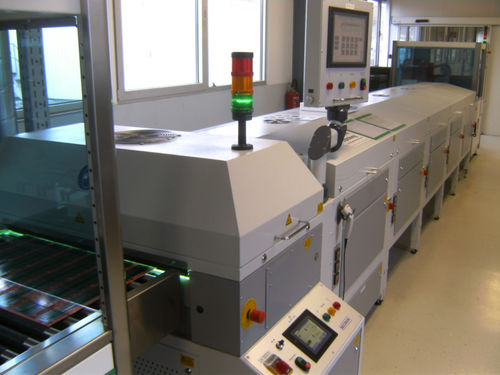

Double-sided final curing line for photo soldermask (post-exposure and development) with UV-bump pre-curing. Line comprises feeder, double-sided UV-bump unit, BELTROTHERM dryer and stacker.

Line configuration

• Double-sided final curing line for soldermask
• Pos 1: Feeder
• Pos 2: UV-bump double-sided
• Pos 3: BELTROTHERM dryer double-sided
• Pos 4: Stacker

Operation
The line operates fully automatically after loading and is suitable for unattended 24/7 three-shift operation. The BELTROTHERM dryer length is configured to meet required throughput. Temperature profiles are adapted for different PCB thicknesses and special material types and are stored in the PLC. Optimized temperature profiles can be recorded and saved in up to 120 programs.

Operation & control
Drying programs are selected via the touch screen and can be changed within minutes to support rapid lot changeovers. The line reports operational readiness to upstream machines. The touch-screen PLC (OMRON) provides a clear overview of operating conditions and supports further user input.

Details of BELTROTHERM dryer

• Ballast (100% and 50% adjustable)
• UV lamp with optional pneumatic shutter
• Air-cooled housing with aluminium reflector

Advantages

• Long-standing German engineering and manufacturing
• Innovative UV pre-curing technology
• Complete, even drying and curing
• Very short curing times
• Energy-efficient system design
• Immediate further processing possible
• High scratch resistance and glossy finish
• Improved durability and chemical resistance

Applications / Uses

• Printing industry
• Electronics industry
• Plastics industry
• Textile industry
• Packaging industry
• Automotive industry
• Glass industry

Available modules

• Stabilization module
• Evaporation module
• Heating module
• Cooling module
• Various inlet / outlet variants
• PLC control in a mobile console with touch-screen

Technical specifications

• Working widths: 610 mm / 24" or 760 mm / 30"
• Belt speed: adjustable
• Tack drying soldermask: 0.5 - 50.0 m/min
• Curing soldermask: 0.2 - 2.0 m/min
• Curing paste: 0.5 - 5.0 m/min
• Temperature range: RT - 250 °C
• Electrical connection: 400 V 3/N/PE 50 Hz
• Connecting power per module: 9.3 kW / 18.6 kW
• Working power per module: 4.6 kW / 9.3 kW
• Supply air / exhaust air per module: 100 - 300 m³/h
• Module length: 1000 mm
• Module width: 1000 mm
• Module height: 1200 mm
