Ultraviolet light drying tunnel

hot airroom-temperature air blower

Product

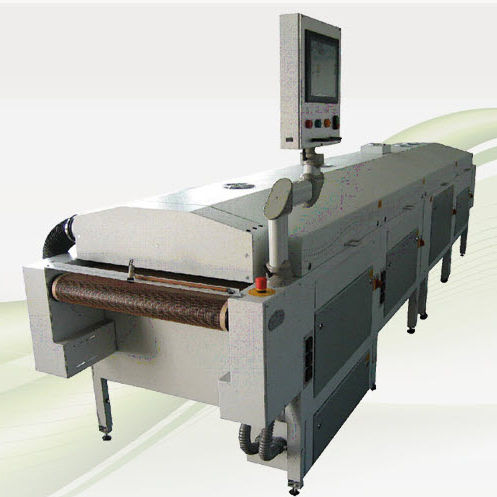

Beltrotherm continuous dryer with a flat conveyor belt transports and dries coated materials quickly and efficiently. Required temperature profiles and setting data are stored in up to 120 programs and are available via touch control.

Details

• Ballast (100% and 50% adjustable)
• UV lamp with or without pneumatic shutter
• Air-cooled housing with aluminium reflector

Advantages

• 60 years 'Made in Germany'
• Innovative UV technology
• Complete, even UV-curing
• Very short curing times
• Sustainable energy-saving systems
• Immediate further processing possible
• High scratch resistance and gloss
• Durable with increased chemical resistance

Applications

• Printing industry
• Electronic industry
• Plastics industry
• Textile industry
• Packaging industry
• Automotive industry
• Glass industry

Technical Information
Working widths: 610 mm / 24" or 760 mm / 30"
Belt speed: adjustable
Tack drying soldermask: 0,5 - 50,0 m/min.
Curing soldermask: 0,2 - 2,0 m/min.
Curing paste: 0,5 - 5,0 m/min.
Temperature range: RT - 250°C
Electrical connection: 400 V 3/N/PE 50 Hz
Connecting power per module: 9,3 kW / 18,6 kW
Working power per module: 4,6 kW / 9,3 kW
Supply air, exhaust air per module: 100 - 300 m³/h
Module length: 1000 mm
Module width: 1000 mm
Module height: 1200 mm
Available modules include: calming module; evaporation (Abdunst) module; heating module; cooling module; inlet/outlet variations; PLC control in the mobile console with touch-screen.
