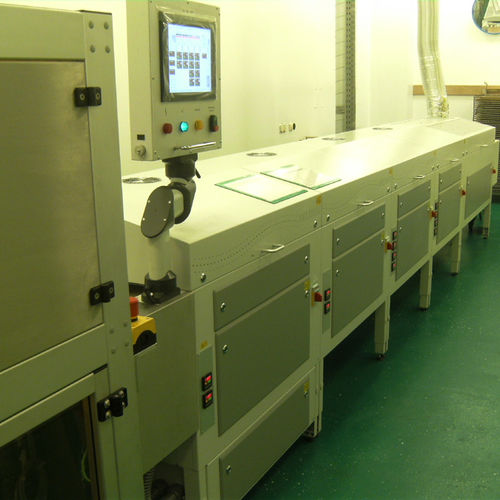

Hot air drying tunnel Beltrotherm
screen printing

Hot air drying tunnel - Beltrotherm - Beltron GmbH - screen printing
Hot air drying tunnel - Beltrotherm - Beltron GmbH - screen printing
Add to favorites
Compare this product
Go to the Beltron GmbH website for more information

Characteristics

Type
hot air
Applications
screen printing

Description

Overview
  • Brand: Beltron GmbH
  • Product: Predrying after soldermask coating
  • Model/Series: Beltrotherm
  • Function: Continuous belt dryer for solvent evaporation and predrying of wet coatings (e.g. soldermask, etch resist). Horizontal processing; single- or double-sided configuration depending on equipment.


Coating types
  • Screen printing (single- or double-sided, vertical)
  • Pour coating (single-sided)
  • Spray coating (single- or double-sided)
  • Dip coating
  • Roller coating
  • Other coating processes


Features / Benefits
  • Stepless power control
  • Adjustable belt speed
  • PLC control (OMRON) with touch-screen for quick selection and storage of temperature profiles
  • Optimized temperature profiles recorded and stored in up to 120 programs
  • Thermal drying with short predry/cure times (typ. 5–7 minutes for solvent evaporation)
  • Energy-efficient, sustainable system design
  • Allows fast downstream processing after drying
  • Achievable results: improved scratch resistance, glossy surface, increased durability and chemical resistance


Applications
  • Printing industry
  • Electronics industry (PCB soldermask processing)
  • Plastics industry
  • Textile industry
  • Packaging industry
  • Automotive industry
  • Glass industry


Technical data
  • Working width: 610 mm (24") or 760 mm (30")
  • Belt speed: adjustable
  • Predrying range (soldermask): 0.5–50.0 m/min
  • Cure range (soldermask): 0.2–2.0 m/min
  • Cure range (pastes): 0.5–5.0 m/min
  • Temperature range: RT–250 °C
  • Electrical connection: 400 V 3/N/PE 50 Hz
  • Installed power per module: 9.3 kW / 18.6 kW
  • Operating power per module: 4.6 kW / 9.3 kW
  • Supply/exhaust air per module: 100–300 m³/h
  • Module dimensions: L 1000 mm × W 1000 mm × H 1200 mm
  • Available modules: relaxation module, solvent-evaporation module, heating module, cooling module, various in-/outfeed modules
  • Control: OMRON PLC with touch-screen, up to 120 storable temperature programs
