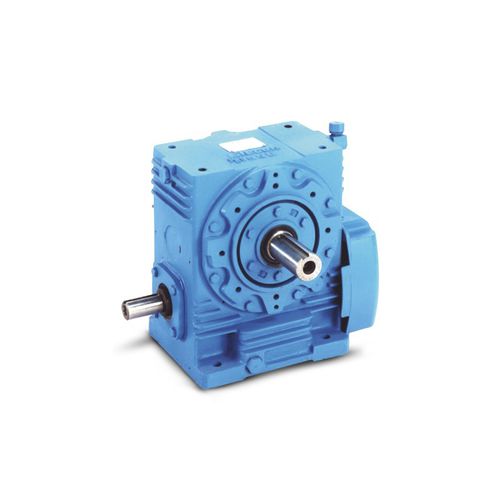

Worm gear SNU

straight-toothedshaft

Thank you for choosing ELECON gear box, the value leader among reputed gear manufacturers in india. We sincerely request you to go through this opération and maintenance manual, before you start using this product. This manual is designed carefully covering ail important aspects and features of the gear box. To obtain warranty service or paid after sales services for our produt, contact EMTICI Engineering Limited office nearest to you. An address/telephone/fax/e-mail list of EMTICI offices is provided on the back cover of the manual. The proper working of a gear unit dépends on careful installation, correct grade of lubricant and good working conditions. Hence, it is most important to see that the installation of gear unit is done according to the instructions given in this manual to ensure proper working of th gear unit, and to ensure a long and trouble free service. 2) INSTALLATION ELECON worm réduction gear units are supplied in completely assembled condition without oil. The shaft ends are coated with anti-corrossive agents which are to be removed only by suitable solvents. In no case, shafts should be scraped on field. 2.1) TRANSPORTATION The gear units should be lifted by making the use of the eyebolts or integrally cast lugs. These are designed for the weight of the gear units only and no accessories should be lifted alongwith the gear units, In no case shaft ends should be used for handling the units. NU/SNU models, vertical gear units should be lifted by using eye bolts fitted on the gear units. The complété method of lifting is shown in the figres a, b and c.Not to lift the gear unit as shown in fig. d & e.
