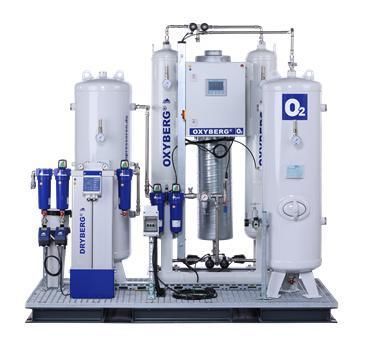

High-concentration oxygen generator OXYBERG 1500

medicalfor hospitalPSA

Overview
BERG provides turnkey on-site PSA medical oxygen generation systems for hospitals, clinics, health networks and emergency projects. Packages combine PSA oxygen generators, air compressors, air treatment, oxygen storage, monitoring and containerized deployment options.

Key Highlights

• Complete on-site PSA oxygen generation packages for continuous 24/7 operation
• Typical PSA oxygen purity: 93–95%
• Modular options: oxygen booster, cylinder filling ramp, containerized layouts and redundancy concepts
• Certifications: ISO 9001:2015, ISO 13485:2016 and CE (PED 2014/68/EU) where applicable

Complete BERG Solution – Package Components

• 01 Air Compressor — Reliable compressed air supply sized for continuous PSA operation
• 02 Air Treatment — Filtration and dryers to protect the PSA system and ensure stable performance
• 03 OXYBERG PSA Generator — On-site oxygen generation unit for medical oxygen supply concepts
• 04 Oxygen Buffer Tank — Intermediate storage to stabilise flow, pressure and control
• 05 Monitoring & Alarm — Oxygen purity and pressure monitoring with alarm functions and interface capability
• 06 Hospital Supply Interface — Connection concept for integration with hospital pipeline systems (subject to local regulations)
• 07 Optional Cylinder Filling — Booster and filling ramp for backup cylinders or decentralised logistics
• 08 Containerized Plant — Rapid-deployment container solutions for remote or emergency projects

Process Flow

• 1 Air compression
• 2 Air treatment (filtration, drying)
• 3 Oxygen generation (PSA)
• 4 Oxygen storage
• 5 Purity monitoring
• 6 Hospital supply / pipeline connection
• 7 Optional cylinder filling

Sample Configuration – OXYBERG 1500 Complete Package
Example package specification: OXYBERG 1500 — Typical purity 95%, O₂ flow 39 Nm³/h. Final sizing, redundancy level, storage and pressure strategy depend on project requirements.

Standards & Project Requirements
Systems are engineered for medical oxygen supply concepts; final suitability depends on complete system configuration, installation, applicable national regulations and project approvals. Typical considerations: required flow and purity, hospital pipeline or cylinder strategy, backup and reserve capacity, monitoring and alarm requirements, electrical supply and installation environment.

Technical Specifications

• Technology: PSA (Pressure Swing Adsorption)
• Typical oxygen purity: 93–95% (project-dependent)
• Sample model: OXYBERG 1500 — Purity 95% · O₂ flow 39 Nm³/h
• Flow range: Project-specific, from compact units to large hospital plants
• System scope: Air compressor, air treatment, PSA generator, oxygen storage, controls and optional cylinder filling
• Installation types: Indoor skid, technical room installation or containerized plant
• Options: Redundancy, oxygen booster, filling ramp, container solution, monitoring and alarm functions
• Certifications: ISO 9001:2015; ISO 13485:2016; CE marked under PED 2014/68/EU for relevant items

Applications

• Hospitals
• Clinics
• Regional or centralised health networks
• Remote medical facilities
• Field hospitals and emergency deployments
• Government and NGO medical projects

Advantages

• Reduced long-term oxygen logistics costs
• Increased independence from cylinder deliveries
• Scalable systems for various hospital sizes
• Containerized deployment for rapid installation
• Single-source supply with service and spare parts support
