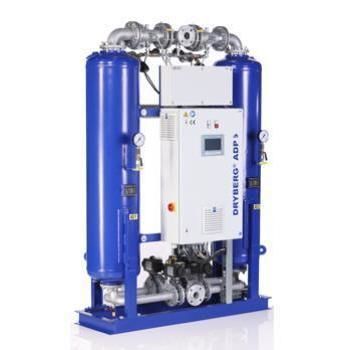

Adsorption with heat compressed air dryer DRYBERG® ADP

desiccantadsorptiontwo-stage

Overview
The DRYBERG® ADP series are adsorption air dryers with thermal regeneration designed for compressed air systems. They remove moisture by adsorption and deliver extremely low dew points for industrial processes that require very dry, clean air.

Operation
ADP dryers use two adsorption towers operating alternately: while one tower adsorbs moisture from pressurized air, the other is regenerated. Regeneration is achieved by heated ambient air supplied by a fan and heater. The regenerated desiccant is then cooled by a small flow of dried, expanded compressed air to ensure continuous, uninterrupted operation.

Key features

• Thermal regeneration (heater + fan) enabling Zero Purge operation — no purge air consumption from product stream.
• Two-tower design with valves, pressure gauges and sturdy support frame.
• Advanced control systems and interfaces (e.g. Siemens control panels on specific models) for status display, settings, alarms and diagnostics.
• Modular construction to adapt systems to specific requirements or local conditions.
• Use of reputable European/manufacturer components for high reliability and durability.

Applications and uses
The ADP dryers are suited for sectors requiring extremely dry and clean compressed air: food industry, pharmaceutical and medical air production, breathable/medical air, cleanrooms and any industrial process needing a low dew point. They are appropriate for hot and humid environments and high flow-rate installations.

Advantages of thermal-regenerated adsorption drying

• Achieves very low pressure dew points for maximum air purity.
• Energy-efficient regeneration by using external heat sources and Zero Purge concept.
• Durable construction for reliable operation and long desiccant life.
• Reduced downtime due to continuous alternating tower operation.
• Adaptable to varied industrial requirements with optional controls and communication protocols.

Technical data (summary)
Type | Connection | Capacity (Nm3/h) | Fan power (kW) | Heater power (kW) | Dimensions A x B x C (mm) | Weight (kg)
ADP 400 | DN50 | 400 | 1.3 | 3.5 | 1750 x 1030 x 2260 | 1200
ADP 700 | DN50 | 700 | 1.6 | 7 | 1860 x 1180 x 2310 | 1400
ADP 1000 | DN80 | 1000 | 1.6 | 8 | 1920 x 1280 x 2390 | 1500
ADP 1400 | DN80 | 1400 | 1.6 | 10 | 1920 x 1320 x 2420 | 1900
ADP 1700 | DN80 | 1700 | 4 | 14 | 2120 x 1450 x 2480 | 2300
ADP 2000 | DN80 | 2000 | 4 | 17 | 2180 x 1480 x 2550 | 2800
ADP 2500 | DN100 | 2500 | 7.5 | 22 | 2400 x 1520 x 2640 | 3400
ADP 3000 | DN100 | 3000 | 8.5 | 26 | 2400 x 1540 x 2630 | 3600
ADP 3500 | DN100 | 3500 | 8.5 | 32 | 2750 x 1900 x 2790 | 4000
ADP 4000 | DN150 | 4000 | 8.5 | 35 | 2800 x 1990 x 2890 | 4800
ADP 5000 | DN150 | 5000 | 15 | 45 | 2910 x 2040 x 2870 | 5600
ADP 6000 | DN150 | 6000 | 15 | 56 | 3400 x 2350 x 3000 | 6300
ADP 7000 | DN150 | 7000 | - | - | 3500 x 2280 x 3000 | 7200
ADP 8200 | DN150 | 8200 | - | - | 3600 x 2500 x 3100 | 8000
ADP 9500 | DN200 | 9500 | - | - | 3800 x 2600 x 3300 | 9000

Specifications / technical features

• Series: DRYBERG® ADP (adsorption dryers with thermal regeneration)
• Principle: desiccant bed adsorption with counter-current thermal regeneration
• Regeneration: heated ambient air (fan + heater) with Zero Purge operation
• Configuration: two alternating towers (adsorption / regeneration)
• Control: PLC/touchscreen controllers available (e.g. Siemens SIMATIC on some models)
• Options: dew point control, insulation, communication protocols (Profibus/Modbus), valve switching units
• Materials/components: components from recognized European manufacturers for reliability and durability
