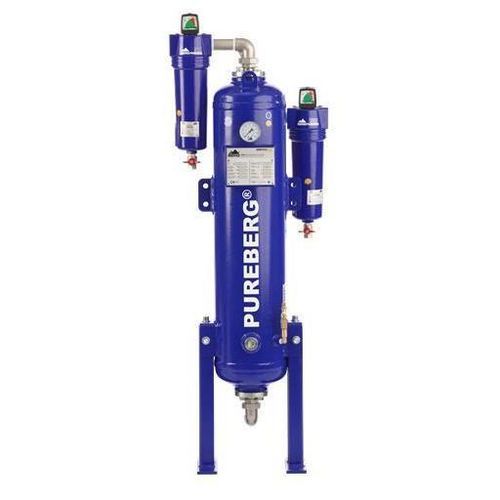

Activated carbon adsorber PUREBERG® Z 150 V

for compressed air

Overview
PUREBERG® Z series provide compact activated carbon adsorption packages for producing oil-free compressed air in industrial environments. Designed for applications requiring ultra-pure air (laboratories, pharmaceuticals, food processing, electronics, hospitals), the units integrate carbon adsorption towers with required pre- and dust filters to deliver reliable ISO Class 0 quality when combined with the PUREBERG® CC catalytic converter.

PUREBERG® Z - V, Oil-free package
Modular oil-free package including activated carbon tower, necessary filters and oil indicator. Plug-and-play design allows straightforward integration into existing compressed air systems. Suitable for small to large workflows depending on model selection.

PUREBERG® CC, Oil-free catalytic converter
The PUREBERG® CC catalyst oxidizes hydrocarbons to CO2 and H2O, ensuring permanently oil-free compressed air with a maximum residual oil content of 0.003 mg/m³ (ISO 8573-1 Class 0 when used with the converter).

Available models

• PUREBERG® Z 150 V Activated carbon tower — Compact oil-free compressed air solution for small operations and sensitive applications (laboratories, workshops). Net €4,040.00
• PUREBERG® Z 180 V Activated carbon tower — Efficient oil-free air package for medium workflows. Net €4,540.00
• PUREBERG® Z 250 V Activated carbon tower — High-purity oil-free air for standard industrial needs. Net €5,130.00
• PUREBERG® Z 340 V Activated carbon tower — Advanced filtration oil-free air package. Net €5,650.00
• PUREBERG® Z 480 V Activated carbon tower — Robust oil-free air system for large-scale use. Net €6,230.00
• PUREBERG® Z 600 V Activated carbon tower — Powerful oil-free air solution for demanding applications. Net €6,810.00
• PUREBERG® Z 820 V Activated carbon tower — Reliable oil-free package for heavy industrial tasks. Net €8,250.00
• PUREBERG® Z 1000 V Activated carbon tower — Premium oil-free compressed air system for critical applications. Net €9,380.00
• PUREBERG® Z 1200 V Activated carbon tower — High-capacity variant within the Z range (technical data below).

Technical data (PUREBERG® Z 150 - 1200 V)
Type | Connection | Capacity (m³/h) | Dimensions (A x C x D) (mm) | Pre filter options | Dust filter | Weight (kg)
Z 150 V | 1" | 150 | 1202 x 696 x 575 | F 05FW / F 05SW / F 05DW | 80
Z 180 V | 1" | 180 | 1382 x 696 x 575 | F 05FW / F 05SW / F 05DW | 89
Z 250 V | 1" | 250 | 1764 x 605 x 471 | F 06FW / F 06SW / F 06DW | 80
Z 340 V | 1 1/2" | 340 | 1540 x 696 x 700 | F 09FW / F 09SW / F 09DW | 163
Z 480 V | 1 1/2" | 480 | 1639 x 696 x 700 | F 09FW / F 09SW / F 09DW | 173
Z 600 V | 1 1/2" | 600 | 2099 x 696 x 700 | F 13FW / F 13SW / F 13DW | 217
Z 820 V | 2" | 820 | 1891 x 860 x 845 | F 15FW / F 15SW / F 15DW | 341
Z 1000 V | 2" | 1000 | 2119 x 860 x 845 | F 20FW / F 20SW / F 20DW | 391
Z 1200 V | 2" | 1200 | 2219 x 860 x 845 | F 24FW / F 24SW / F 24DW | 413

Operating pressure (bar g) — K1
K1 mapping (operating pressure → K1 factor approximate): 4 → 0.6, 5 → 0.7, 6 → 0.8, 7 → 1.0, 8 → 1.1, 9 → 1.2, 10 → 1.3, 11 → 1.4, 12 → 1.5, 13 → 1.6, 14 → 1.7, 15 → 1.8, 16 → 2.0

Technical specifications

• Series: PUREBERG® Z - V (models Z 150 V to Z 1200 V).
• Guaranteed oil-free air when combined with PUREBERG® CC: ISO 8573-1 Class 0 (residual oil ≤ 0.003 mg/m³ with catalyst).
• Capacity range: 150–1200 m³/h depending on model.
• Connections: 1", 1 1/2", 2" depending on model.
• Prefilters and dust filters: model-dependent (examples: F 05FW / F 05SW / F 05DW … F 24FW / F 24SW / F 24DW).
• Typical applications: pharmaceuticals, food processing, electronics, hospitals, laboratories, workshops and other environments requiring ultra-pure compressed air.
• All packages include an oil indicator for ongoing system monitoring; plug-and-play concept simplifies installation and maintenance planning.
