Carbone molecular sieve 4A, MS4

Molecular sieves 4A, MS4

Overview

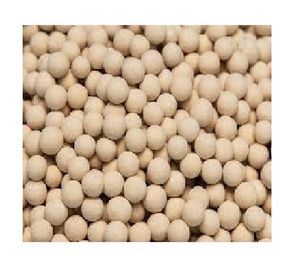

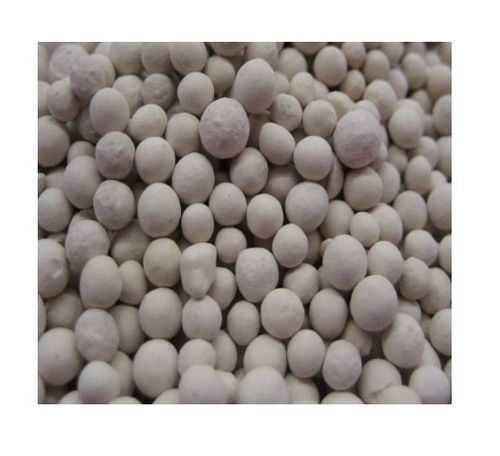

Molecular sieve 4A (MS4) is a crystalline aluminosilicate adsorbent formulated for adsorption drying and purification of gases and liquids. Supplied as spherical beads with 4 Å pore openings, it is intended for industrial drying and purification applications.

Technical data
Item: Value
Appearance: Spherical beads
Material: Crystalline aluminosilicate
Bulk density: 730 g/l
Crush strength: 60 N
Bead size: Approx. 3.0 – 5.0 mm
Total volatile (950°C): 2.0 %
H2O adsorption capacity (10% r.h., 25°C): 18.5 %
H2O adsorption capacity (80% r.h., 25°C): 22.5 %
Crystal pore openings: 4 Å

Handling and storage
Handle to minimize dust generation. When transferring into containers in the presence of flammable liquids, gases or dust, electrically ground both containers to prevent static sparks and risk of explosion. Store in a cool, dry warehouse: shelf life approximately 4 years in drums and 12 months in big bags (from production date). Do not store big bags outdoors for prolonged periods; protect from UV exposure and rain. Reseal opened packages to avoid contamination and moisture or vapor adsorption.

Standard packaging

• Approx. 25 kg
• Approx. 150 kg

Characteristics / technical specifications

• Appearance: Spherical beads
• Material: Crystalline aluminosilicate
• Bulk density: 730 g/l
• Crush strength: 60 N
• Bead size: Approx. 3.0 – 5.0 mm
• Total volatile (950°C): 2.0 %
• H2O adsorption capacity (10% r.h., 25°C): 18.5 %
• H2O adsorption capacity (80% r.h., 25°C): 22.5 %
• Crystal pore openings: 4 Å
• Shelf life: ~4 years (drums), ~12 months (big bags)
• Recommended storage: cool, dry warehouse; protect big bags from prolonged UV and water exposure
• Standard packaging: approx. 25 kg and 150 kg
• Product number (article number): 2212086010
