Gas separation carbone molecular sieve CMS 360

for nitrogen extraction

Product information

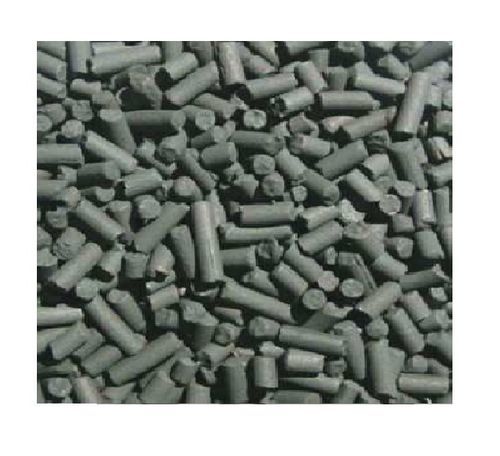

CMS 360 is a coconut-based carbon molecular sieve (CMS) used for gas separation and nitrogen extraction. The material selectively adsorbs specific gas components to separate nitrogen from oxygen, carbon dioxide and other gases. CMS 360 is formulated for ultra-high purity nitrogen production (Grade 5 or higher) and is intended for industrial gas separation processes.

Particle sizes
Available particle sizes: 1.3 ±0.2 mm / 1.5 ±0.2 mm / 1.8 ±0.2 mm

Specifications
Shape: cylindrical
Color: black
Particle size (mm): 1.3 ±0.2 / 1.5 ±0.2 / 1.8 ±0.2
Loss on drying (wt.-%): ≤ 1.0
Bulk density (g/ml): 0.64 - 0.66
Hardness (wt.-%): ≥ 98.0

Applications

• Nitrogen generation by PSA (pressure swing adsorption) and other gas separation systems
• Air separation to produce high-purity nitrogen for food packaging, electronics manufacturing and chemical processing
• CO2 removal and purification of industrial gas streams

Available CMS grades

• CMS360: coconut-based carbon optimized for ultra-high purity (Grade 5 or higher)
• CMS330: coal-based carbon providing higher purity than CMS260 but below CMS360
• CMS260: coal-based carbon suitable for lower-purity applications

Standard packaging

• 20 kg net weight plastic drum
• 137 kg net weight plastic drum

Notes
Minimum order quantity configured in multiples of 20.
