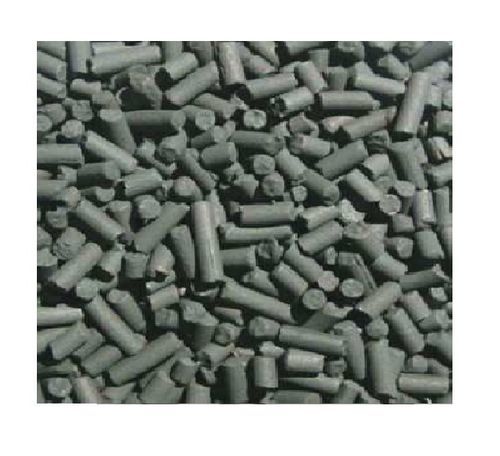

Gas separation carbone molecular sieve CMS 260

for nitrogen extraction

Overview
BERG GaseTech CMS 260 is a carbon molecular sieve (CMS) designed for use in pressure swing adsorption (PSA) and similar gas separation processes. It separates gas molecules by size and polarity and is particularly effective for nitrogen extraction from air, achieving nitrogen purities typically in the range of 97 % to 99.995 % depending on system configuration and operating conditions.

Available diameters
Diameter 1.3 mm / Diameter 1.5 mm / Diameter 1.8 mm

Specifications (table)
Specification - unit - description
shape - - cylindrical
color - - black
particle size - mm - 1.3 ±0.2 / 1.5 ±0.2 / 1.8 ±0.2
drying loss - % wt. - 1.0 max.
bulk density - g/ml - 0.64 - 0.66
hardness - % wt. - 98.0 min.

Raw material base

• highly microporous carbon

Features

• High separation performance and operational reliability
• Low dust generation and homogeneous grain size

Uses / Applications

• Nitrogen generation from air (PSA nitrogen production)
• Removal of carbon dioxide from methane
• Ethylene production from mixed gas streams
• Industrial applications requiring precise gas separation: food packaging, electronics manufacturing, chemical processing
• High-productivity PSA applications

Standard packaging

• 20 kg plastic drum (gross weight container)
• 40 kg plastic drum, net weight (1.3 mm variant)
• 137 kg plastic drum, net weight

Additional information
Product weight indicated on the product sheet: 0.7 kg (product data). Achievable nitrogen purities depend on PSA configuration and operating conditions: typically 97 % – 99.995 %.

Characteristics / technical specifications

• Model: CMS 260
• Product reference (SKU): 2212040260
• Shape: cylindrical
• Color: black
• Particle sizes: 1.3 ±0.2 mm / 1.5 ±0.2 mm / 1.8 ±0.2 mm
• Drying loss: ≤ 1.0 % wt.
• Bulk density: 0.64 – 0.66 g/ml
• Hardness: ≥ 98.0 % wt.
• Raw material: highly microporous carbon
• Main use: gas separation by adsorption (PSA), nitrogen extraction
• Available packagings: 20 kg, 40 kg, 137 kg (plastic drums depending on variant)
