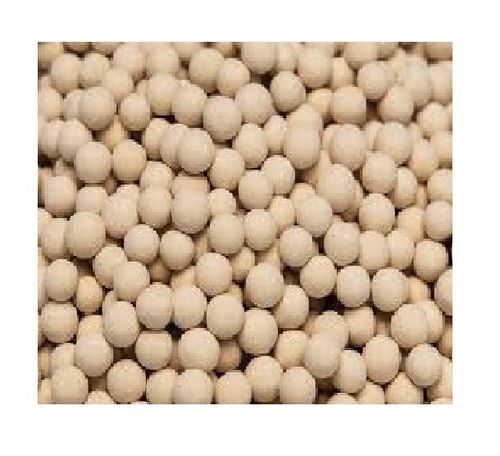

Gas separation carbone molecular sieve ZEO 13X

Product name
ZEO 13X molecular sieve

Overview
ZEO 13X is a synthetic zeolite molecular sieve engineered for removal of trace contaminants from compressed air and other industrial gases. It combines a regular microporous crystalline aluminosilicate structure with high selectivity and regenerability. Typical uses include compressed air drying, desulphurisation, PSA-based oxygen enrichment and trace contaminant control.

Particle and performance data
Article: 1.2 - 2 mm
Bead size range (nominal, mm / approx. mesh size): 1.2 – 2.0 / 10 x 16
Bulk density (compacted, g/l): 655 - 700
Abrasion (wt.%): Max. 0.2
Crush strength (N/bead): Min. 10
Moisture content (on delivery, wt.%): Max. 1.0
Water adsorption capacity* (55% RH, 20 °C, wt.%): Min. 26.5
CO2 adsorption capacity* (at 2.4 mbar CO2 pressure at 25 °C, cm³ (STP)/g): Min. 24.0

Applications and benefits

• Non-cryogenic oxygen enrichment: separation of O2/N2 using PSA/VPSA technologies for oxygen generators.
• Trace impurity removal: adsorption of contaminants in compressed air and process gases.
• Desulphurisation: removal of mercaptans and sulphur compounds from natural gas and liquids.
• Drying: effective drying of gases and liquids in industrial processes.
• Thermo-chemical energy storage: media for cold/heat storage applications.

Use in PSA systems
ZEO 13X functions as an effective adsorbent in PSA systems, improving separation performance and maintaining process stability by removing trace compounds that can impair adsorbent capacity and lifetime.

Technical specifications

• Pore size: 9 Å (0.9 nm).
• Chemical formula (indicative): Na2O·Al2O3·m SiO2·n H2O (m ≤ 2.35).
• Material basis: synthetic crystalline aluminosilicate with regular microporous structure.
• Special properties: high selectivity, regenerability, robust mechanical performance.

Regeneration

• Increase temperature.
• Reduce pressure.
• Use a suitable purge gas.

Packaging units

• 135 kg (steel drum).
• 650 kg (big bag with liner).

Product remarks / Technical characteristics

• Commercial designation: ZEO 13X
• Product number (SKU): 2212086020
• Declared weight (meta): 0.6 kg
• Bead size (nominal): 1.2 – 2.0 mm (10 x 16 mesh)
• Bulk density (compacted): 655 - 700 g/l
• Abrasion (max): 0.2 wt.%
• Crush strength (min): 10 N per bead
• Moisture on delivery (max): 1.0 wt.%
• Water adsorption capacity (55% RH, 20 °C): ≥ 26.5 wt.%
• CO2 adsorption capacity (2.4 mbar, 25 °C): ≥ 24.0 cm³ (STP) / g
• Pore size: 9 Å (0.9 nm)
• Chemical composition: sodium aluminosilicate-type zeolite
• Typical applications: PSA oxygen generation, drying, desulphurisation, trace impurity removal, thermo-chemical energy storage
• Packaging options: 135 kg drum, 650 kg big bag
• Manufacturer: BERG Kompressoren GmbH
• Price (net, as shown): 6.57 EUR
