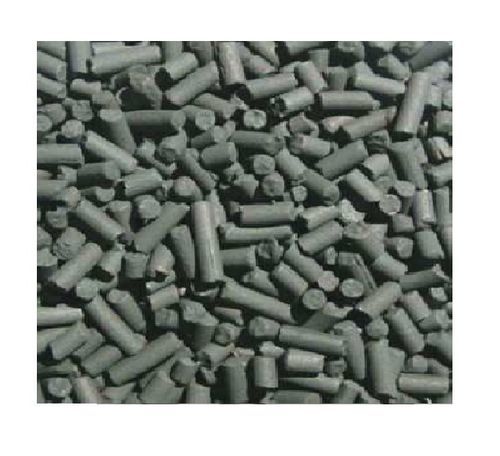

Nitrogen extraction carbone molecular sieve CMS 330

for gas separation

Product overview
CMS 330
Carbon molecular sieve
Particle size: 1.0 ±0.2 mm

Raw material

• High microporous carbon

Key features

• High separation efficiency and operational reliability
• Low dust content; homogeneous particle size

Applications

• Nitrogen extraction from air (PSA)
• Removal of CO2 from methane
• Production of ethylene from mixed gases
• High-productivity nitrogen generation systems

PSA performance (99.5% N2, 20°C, 0.8 MPa)

• Cycle time: 40 s
• Recovery (N2/Air): 49%
• Productivity (N2): 330

Specifications

• Shape: Cylindrical
• Color: Black
• Particle size: 1.0 ±0.2 mm
• Diameter: 1.0 mm
• Loss on drying: ≤ 1.0 wt.-%
• Bulk density: 0.64 - 0.66 g/ml
• Hardness: ≥ 98.0 wt.-%

Standard packaging

• 20 kg, plastic drum (net weight)
• 137 kg, plastic drum (net weight)

Price and grade comparison
Price varies with pore size, adsorption efficiency and intended application. Different grades (for example CMS 260 vs CMS 330) show differences in selectivity and adsorption capacity which affect cost. CMS 260 generally has smaller pores and higher selectivity for small molecules such as nitrogen; CMS 330 has larger pores and broader adsorption capacity.

Product code

• Product code: 2212040330
