Dew-point data-logger METPOINT®️ BDL

flowcurrentpower

Product information

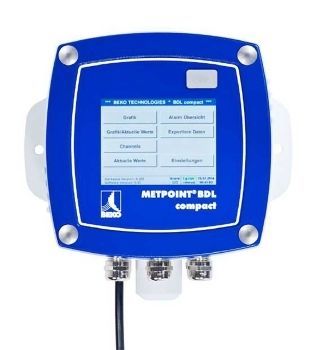

The METPOINT®️ BDL compact is a compact compressed air data logger designed for continuous monitoring and long-term archiving of critical compressed air parameters. It records and evaluates pressure, temperature, pressure dew point, volume flow and residual oil vapour content via 2–4 sensor inputs and provides alarms and outputs for system integration.

Measured parameters

• Volume flow rate
• Pressure dew point
• Pressure
• Active power / current efficiency
• Temperature
• Residual oil vapour content

Key features

• Compact electronic recorder for compressed air and gas applications
• 2 to 4 sensor inputs (analog, digital or mixed); two additional inputs optionally available
• Optional integrated data logger with 4 GB micro SDHC (class 4)
• 2 relay alarm outputs (potential-free, change-over contacts)
• Analog outputs for 4…20 mA signals (e.g. dew point and consumption sensors)
• User interface: 3.5-in. transmissive touchpanel (TCT) for configuration and on-site display
• Process-oriented display, statistics, charts and exportable measurement records

Technical data
Dimensions (mm): 180 x 166 x 115 (W x H x D)
Operating temperature: 0 … +50 °C
Power supply: 100 … 240 VAC / 50 … 60 Hz / max. 10 VA
Sensor inputs: 2 inputs for dew point and consumption probes (optional 2 analog inputs); configurable 2–4 inputs analog/digital/mixed
Display / keyboard: 3.5-in. TCT transmissive touchpanel
Alarm outputs: 2 relays, potential-free, change-over contacts
Analog outputs: connection for 4…20 mA signals (max. load < 500 Ω)
Integrated data logger: micro SDHC 4 GB (class 4) standard

Additional information
The METPOINT®️ BDL compact evaluates incoming signals, displays process-relevant results on-site and archives measured values and events for further analysis. Alarm forwarding to supervisory systems enables fast interventions and supports quality assurance and production safety.
