Temperature data-logger METPOINT®️ BDL p.

flowdew-pointpressure

Product information

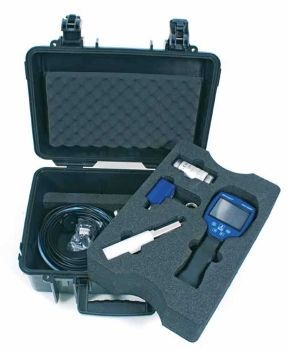

METPOINT®️ BDL p. with DPM Set - mobile data logger for on-site compressed air quality measurement.

Included in the set

• Mobile data logger BDL portable
• DPM SD23 dew point transmitter with dry protection sleeve
• MK-Basic-PN16 measuring chamber with quick-release coupling
• Power supply unit
• LiCl 11,3% RH control and calibration kit
• 5 m connecting cable with quick-release coupling for SD23
• Sturdy transport case

Overview
The portable METPOINT BDL data logger enables rapid and simple measurement data recording and evaluation of compressed air quality directly on site. The universal hand-held device with integrated data logger records key parameters such as consumption/flow, pressure, temperature, residual humidity and pressure dew point. Process data are converted into user-friendly statistics and charts. Up to 100 million measurements together with time and location can be stored and exported.

The universal sensor inputs are compatible with standard industrial transducers. The device features a 3.5" touch screen and an intuitive user interface. Measurements can be transferred by USB memory stick to a PC for further evaluation with METPOINT READER SW201 software. Real-time monitoring and interpretation functions support performance assessment and corrective actions.

ISO 8573 oil class information
The METPOINT BDL p. with DPM set provides precise dew point measurement and supports assessment of moisture and oil content in compressed air for ISO 8573 classification. By analysing dew point and oil content together with other monitoring devices, users can classify compressed air purity and ensure compliance with ISO 8573 classes.

Features

• Portable data logger for on-site compressed air quality measurement
• Records parameters: volume/flow, pressure, temperature, residual humidity and pressure dew point
• Universal sensor inputs compatible with conventional transducers
• 3.5" colour touch display with graphical presentation and coloured measuring curves
• Integrated data logger with large storage capacity (up to 100 million measured values)
• USB interface for data export to PC
• User-friendly statistics, charts and interpretation functions
• Real-time monitoring and alarm/analysis functions

Technical data (DPM SD23 sensor)
Measuring principle: Capacitive polymer sensor
Measured value: °Ctd, dew point / frost point
Measuring range: –60 … +30 °Ctd
Output signal (analogue): 4 ... 20 mA, 4-wire
Output signal (digital): RS485, Modbus RTU, 4-wire
Max. permissible operating overpressure: 50 bar [g]
Process medium: Compressed air
Temperature-compensated range: –25 … +60 °C
Reference conditions: EN 61298-1
Process connection: G 1/2" external thread (ISO 228-1)
Sensor protection: Stainless steel sintered filter 40 µm
Measuring gas flow rate with measuring chamber: 1 ... 3 standard l/min
Weight (sensor): 175 g
Protection class according to EN 60529: IP 65

Specifications / technical data

• Manufacturer: BEKO Technologies GmbH
• Model: METPOINT®️ BDL p.
• Product number / SKU: 4029839
• Net price: 3827.04 EUR
• Weight (complete set): 3.5 kg
• Main measurable parameters: pressure dew point, residual humidity, pressure, temperature, flow/consumption
• Display: 3.5" touch screen
• Data export: USB memory stick (compatible with METPOINT READER SW201)
• Storage capacity: up to 100 million measurements
• Sensor (DPM SD23) measuring range: –60 … +30 °Ctd
• Sensor outputs: 4-20 mA and RS485 (digital)
• Process connection (sensor): G 1/2" (ISO 228-1)
