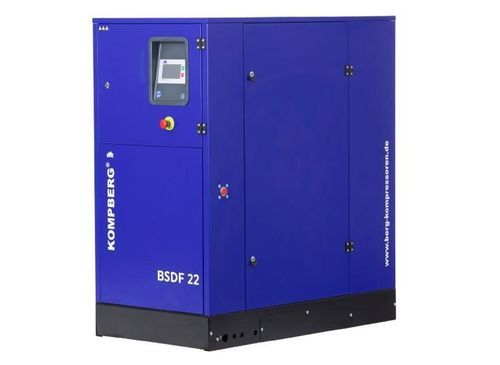

Screw compressor KOMPBERG® BSDF22

airelectrically-poweredindustrial

Product overview
Screw compressor KOMPBERG® BSDF22 — 22 kW direct drive screw compressor for industrial compressed-air applications. Optional BERG Master Controller (RC / RC-S) enables group control, duplicated operator panel on PC/mobile and remote monitoring.

BERG Master Controller (RC / RC-S) — main functions

• Control of start/stop sequence for compressors within a common compressed-air network
• Monitoring and maintenance of correct system pressure
• Optimal load distribution among individual compressors
• Selection of lead compressor
• Setting pressure start/stop thresholds and system control parameters
• Collection and processing of monitored-system information and signalling (RC-S)
• Remote monitoring via web interface and Modbus TCP (Modbus RTU over RS485 optional) (RC-S)

Group control modes
Control of the compressor group can operate in Sequence or Cascade mode. Sequence control is recommended for compressors of comparable size to equalize running time. Cascade control is intended for machines of different sizes where one unit runs continuously and others are brought in at peak demand.

Availability
Lead time: approx. 6–7 weeks.

Technical data (excerpt)
Screw compressor: BSDF 22
Working overpressure [bar] — options: 7.5 / 10 / 13
Capacity [m3/min] at 7.5 bar: 0.9 – 3.7
Capacity [m3/min] at 10 bar: 0.9 – 3.1
Dimensions (LxWxH) [mm]: 720 x 1300 x 1460
Compressed air connection: G 3/4
Weight: 520 kg (technical table); 570 kg (declared metadata)
Ambient temperature range [°C]: +5 to +40
Cooling air demand [m³/h]: 3500
Compressed air outlet temperature: approx. +10 °C above ambient
Sound level L [dB(A)]: 70
Drive type: direct drive (1:1)
Nominal motor power [kW]: 22
Motor efficiency class: IE3
Motor protection: IP 55
Supply voltage [V]: 400/3/50
Recommended supply cable [mm²]: 3x16 + PE
Protection fuse [A]: 63

Included / related documentation

• Technical Data Screw Compressor KOMPBERG® BSDF22 (data sheet)
• Spare parts and maintenance kit for KOMPBERG® BSDF22
• Screw compressors operation and maintenance manual (KOMPBERG series)
• 22 kW technical data (BSDF technical PDF)

Specifications

• Model: KOMPBERG® BSDF22
• Nominal motor power: 22 kW
• Motor efficiency class: IE3
• Voltage / phases / frequency: 400 V / 3 / 50 Hz
• Drive: direct drive
• Operating ambient temperature: +5 °C to +40 °C
• Cooling air demand: 3500 m³/h
• Compressed air outlet temperature: approx. +10 °C above ambient
• Sound level: 70 dB(A)
• Compressed air connection: G 3/4
• Dimensions (L x W x H): 720 x 1300 x 1460 mm
• Weight: 520 kg (technical table); 570 kg (declared)
• Available overpressure options: 7.5 / 10 / 13 bar
• Capacity ranges: 7.5 bar: 0.9–3.7 m3/min; 10 bar: 0.9–3.1 m3/min
• Recommended supply cable: 3x16 + PE; fuse: 63 A
