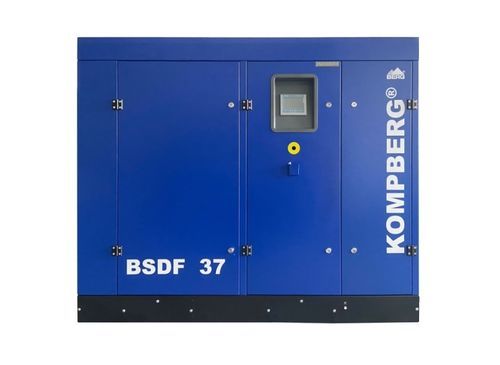

Screw compressor KOMPBERG® BSDF30

airelectrically-poweredstationary

Product information
The KOMPBERG® BSDF30 screw compressor is a frequency-controlled screw compressor manufactured to comply with machine directives and standards. Supplied by BERG Kompressoren GmbH, it is designed for variable-capacity operation and can be delivered with integrated components such as a frequency inverter and optional Siemens controller. The unit is provided as a direct-drive assembly for continuous industrial use.

Key benefits

• Energy savings up to approximately 35%
• Low mechanical wear and reduced depreciation
• Improved process stability (print optimization)
• Reduction of discharge losses
• Lower power consumption leads to reduced CO2 emissions

Technical overview (concise)
The BSDF30 features variable-capacity control via a frequency converter and direct-drive power transmission. It is intended for continuous duty and includes cooling and control components to ensure efficient cooling and a stable compressed air outlet temperature.

Technical specifications

• Model designation: KOMPBERG® BSDF30
• Product number / SKU: 1481100203
• Overpressure (options): 7.5 / 10 / 13 bar
• Capacity (min–max) at 7.5 bar: 1.5 - 5.3 m3/min
• Capacity (min–max) at 10 bar: 1.5 - 4.4 m3/min
• Capacity (min–max) at 13 bar: 1.2 - 3.3 m3/min
• Dimensions (L x W x H): 1750 x 900 x 1450 mm
• Compressed air connection: G 1 1/2
• Weight: 920 kg (table) — note: metadata also lists 970 kg
• Ambient temperature range: +5 °C to +40 °C
• Cooling air demand: 4800 m³/h
• Compressed air outlet temperature: approx. 10 °C above ambient
• Sound level L: 75 dB(A)
• Power transmission system: direct drive
• Nominal motor power: 30 kW
• Nominal fan motor power: 1.5 kW
• Motor IP code: IP55
• Feed voltage: 400 V
• Recommended power feed cable: 3x25 + PE mm²
• Protection fuse: 80 A
