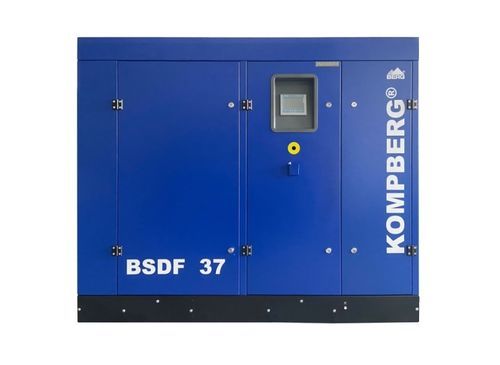

Screw compressor KOMPBERG® BSDF37

airelectrically-poweredstationary

Product overview
The KOMPBERG4 BSDF37 is a screw compressor designed for industrial compressed air supply, combining a 37 kW nominal motor with a direct drive and integrated frequency converter for precise flow control. The unit features removable access doors and a compact footprint to simplify maintenance and installation.

Key features

• Direct drive 1:1 (airend directly coupled to motor)
• Integrated frequency converter for stepless capacity control
• Available discharge pressures: 7.5 / 10 / 13 bar
• Capacity ranges (depending on pressure): 1.6-6.4 / 1.6-5.4 / 1.6-4.8 m3/min
• Siemens electromotor and controller; German high-quality filters
• Large removable doors for easy component access

Technical data
Screw compressor with frequency converter: BSDF 37
Overpressure (bar) - options: 7.5 / 10 / 13
Capacity min-max [m3/min] at 7.5 bar: 1.6 - 6.4
Capacity min-max [m3/min] at 10 bar: 1.6 - 5.4
Capacity min-max [m3/min] at 13 bar: 1.6 - 4.8
Dimensions (L x W x H) [mm]: 1750 x 900 x 1450
Compressed air connection: G 1 1/2
Weight [kg]: 950
Ambient temperature [C]: +5 - +40
Cooling air demand [m3/h]: 5900
Compressed air outlet temperature: approx. 10 C above ambient
Sound level L [dB(A)]: 75
Power transmission: direct drive
Nominal motor power [kW]: 37
Nominal fan motor power [kW]: 1.5
Motor protection class: IP55
Feed voltage [V]: 400
Recommended supply cable [mm2]: 3x35+PE
Protection fuse [A]: 100

Applications and maintenance
The BSDF37 is suitable for industrial production, workshops and process plants where variable flow and energy efficiency are required. Removable doors and a spacious internal layout reduce service time and facilitate routine maintenance. Frequency converter control enables optimized energy consumption according to demand.

Commercial information

• Manufacturer: BERG Kompressoren GmbH
• Model: KOMPBERG4 BSDF37
• Net price:
  25,650.00 (net)
• Availability: approx. 6-7 weeks
