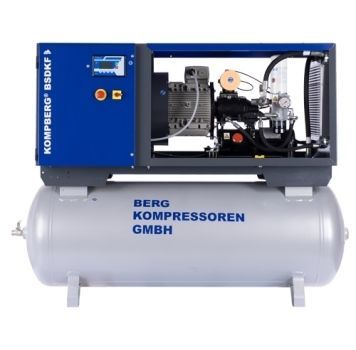

Screw compressor KOMPBERG® BSDKF11

airelectrically-poweredstationary

Product information
Stationary direct-drive screw compressor KOMPBERG® BSDKF11 (nominal motor power 11 kW). Units from 11 kW are supplied with a steel canopy that functions as a sound muffler and directs the cooling-air flow to remove heat from the compressor. The canopy allows easy connection to ducting and unrestricted service access. The compressor uses a BERG B 100 air end with a low‑speed design for reduced noise and vibrations.

Highlights / Benefits

• Direct drive configuration for reduced maintenance
• Steel canopy serving as sound muffler and cooling‑air duct (easy ducting connection)
• Low noise level: 64–70 dB(A) and low vibrations due to low‑speed air end
• BERG B 100 air end optimized for stationary operation
• Easy service access and standardized outlet connection (G 3/4")
• Designed cooling-air flow to prevent overheating

Technical data (table)
Model: BSDKF 11
Operation overpressure [bar] min–max: 6 - 10
Capacity min–max [m3/min] [6 bar]: 0.6 - 1.8
Capacity min–max [m3/min] [7 bar]: 0.6 - 1.6
Capacity min–max [m3/min] [8 bar]: 0.6 - 1.4
Capacity min–max [m3/min] [9 bar]: 0.6 - 1.2
Capacity min–max [m3/min] [10 bar]: 0.5 - 1.1
Ambient temperature: +5°C … +40°C
Voltage / Frequency: 400 V / 50 Hz
Air end: BERG B 100
Noise level [dB(A)]: 64 - 70
Electric motor protection class: IP 55‑F
Weight (receiver mounted) [kg]: 410
Dimensions (L x W x H) receiver mounted [mm]: 1995 x 764 x 771
Nominal motor power [kW]: 11
Rated current [A]: 18.2
Oil filling [l]: 6
Oil content in compressed air [mg/m3]: 2 - 4
Electric motor speed [min‑1]: Min RPM 1,030 (10.0 bar) / Max RPM 3,000 (6.0 bar)
Receiver [l]: 270
Outlet: G 3/4"

Downloads

• Technical Data Stationary Screw Compressor KOMPBERG® BSDKF11 (PDF)
• Stationary Screw Compressor KOMPBERG® BSDKF11 Operation and maintenance manual (PDF)
• Operating Guide VLT® Midi Drive FC 280 (PDF)
• Spare parts and maintenance kit - Screw Compressor KOMPBERG® BSDKF11 (PDF)

Technical specifications

• Model: KOMPBERG® BSDKF11
• Nominal motor power: 11 kW
• Operation pressure range: 6–10 bar
• Free air delivery (approx.) by pressure: 0.6–1.8 m3/min (6 bar) down to 0.5–1.1 m3/min (10 bar)
• Ambient operating temperature: +5°C to +40°C
• Voltage / Frequency: 400 V / 50 Hz
• Air end: BERG B 100 (low‑speed design)
• Noise level: 64–70 dB(A)
• Electric motor protection: IP 55‑F
• Rated current: 18.2 A
• Oil filling: 6 l
• Oil content in compressed air: 2–4 mg/m3
• Motor speed range: Min 1,030 min‑1 (10.0 bar) – Max 3,000 min‑1 (6.0 bar)
• Receiver (mounted): 270 l
• Weight (receiver mounted): 410 kg (table) — page metadata may show 420 kg
• Dimensions (L x W x H) receiver mounted: 1995 x 764 x 771 mm
• Outlet connection: G 3/4"
