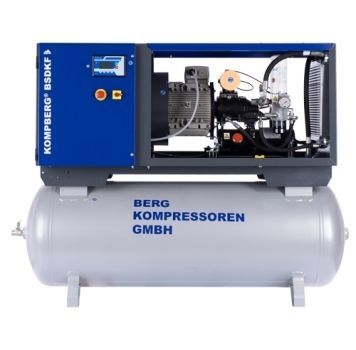

Screw compressor KOMPBERG® BSDKF15

airelectrically-poweredstationary

Product information

• Stationary screw compressor BSDKF15 is specially developed for:
• professional workshops
• small manufacturers, garages, painting shops
• carpentry industry
• furniture production
• packaging plants

Common parameters of the series

• energy saving – no idle run
• high efficiency
• no gearbox or belt transmission
• energy optimized cooling system
• reliability – reduced component count and integrated parts
• very low vibrations
• low-speed machine – service life up to 80,000 operating hours
• low noise level

Technical data (table) Stationary Screw Compressor: BSDKF 15
Operation overpressure [bar] min-max: 6 - 10
Capacity min-max [m3/min] [6 bar]: 1.1 - 2.3
Capacity min-max [m3/min] [7 bar]: 1.0 - 2.1
Capacity min-max [m3/min] [8 bar]: 0.9 - 1.9
Capacity min-max [m3/min] [9 bar]: 0.9 - 1.8
Capacity min-max [m3/min] [10 bar]: 0.9 - 1.5
Ambient temperature: +5°C … +40°C
Voltage, Frequency: 400 V / 50 Hz
Air end: BERG B 100
Noise level [dB(a)]: 63 - 72
Electric motor protection class: IP 55‑F
Weight receiver mounted [kg]: 430
Dimensions receiver mounted (LxWxH) [mm]: 1995 x 764 x 771
Nominal motor power [kW]: 15
Rated amps [A]: 22.2
Oil filling [l]: 6
Oil content in compressed air [mg/m3]: 2 - 4
Electric motor speed [min-1]: Min. RPM – 2050 (10.0 bar); Max. RPM – 3850 (6.0 bar)
Receiver [l]: 500
Outlet: G 3/4"

Characteristics / technical specifications

• Model: KOMPBERG® BSDKF15
• Product number / SKU: 1421100110
• Net price (H.T.): 15700
• Currency: EUR
• Net price unit: per piece
• Operation overpressure: 6 - 10 bar
• Capacity range (6 bar): 1.1 - 2.3 m3/min
• Capacity range (7 bar): 1.0 - 2.1 m3/min
• Capacity range (8 bar): 0.9 - 1.9 m3/min
• Capacity range (9 bar): 0.9 - 1.8 m3/min
• Capacity range (10 bar): 0.9 - 1.5 m3/min
• Ambient temperature range: +5°C to +40°C
• Electrical supply: 400 V / 50 Hz
• Air end type: BERG B 100
• Noise level: 63 - 72 dB(A)
• Motor protection class: IP 55‑F
• Weight (receiver mounted): 430 kg
• Overall dimensions (L x W x H): 1995 x 764 x 771 mm
• Nominal motor power: 15 kW
• Rated current: 22.2 A
• Oil capacity: 6 l
• Oil content in delivered air: 2 - 4 mg/m3
• Motor speed: Min 2050 min-1 (at 10.0 bar) / Max 3850 min-1 (at 6.0 bar)
• Compressed air receiver: 500 l
• Outlet connection: G 3/4"
