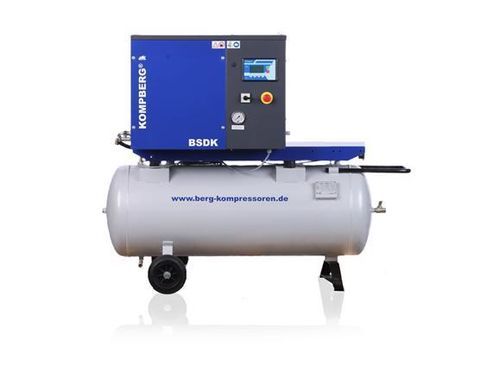

Screw compressor KOMPBERG® BSDK5

airelectrically-poweredstationary

Product description
KOMPBERG® BSDK5: a large, low-speed air end is used for a relatively small compressor. The electric motor is directly coupled to the main compression rotor, significantly reducing maintenance compared with belt-driven or gearbox-driven machines. Compressor output is controlled either by on/off switching based on receiver pressure, by a conventional suction regulator with an updated pressure-level control system, or by an advanced continuous variable-speed control that optimizes machine parameters in real time by smoothly adjusting rpm according to delivered compressed air. Low-speed operation also reduces noise and wear.

Main technical data (table)
Stationary screw compressor: BSDK 5
Operating overpressure [bar] min-max: 5 - 9
Free air delivery [m3/min]: 0.8
Ambient temperature: +5°C ... +40°C
Voltage, frequency: 400 V / 50 Hz
Air end: BERG B 100
Noise level [dB(a)]: 64 - 69
Motor protection class: IP55-F
Weight receiver mounted [kg]: 260
Dimensions receiver mounted (LxWxH) [mm]: 1498 x 641 x 1245
Nominal motor power [kW]: 5.5
Nominal current [A]: 12.1
Oil filling [l]: 3.5
Oil content in compressed air [mg/m3]: 2 - 4
Electric motor speed [min-1]: 1455
Receiver [l]: 270
Outlet connection: G 1/2"

Documents available
Technical data, user manual and spare parts lists (PDF files available for download).

Technical features / specifications

• Model: KOMPBERG® BSDK5
• Type: Stationary screw compressor
• Working pressure range: 5 - 9 bar
• Free air delivery: 0.8 m3/min
• Operating ambient temperature: +5°C to +40°C
• Voltage / frequency: 400 V / 50 Hz
• Compression element (air end): BERG B 100
• Sound level: 64 - 69 dB(A)
• Motor protection class: IP55-F
• Receiver mounted weight: 260 kg
• Item weight (metadata): 295 kg
• Dimensions (L x W x H) mounted on receiver: 1498 x 641 x 1245 mm
• Nominal motor power: 5.5 kW
• Nominal current: 12.1 A
• Oil capacity: 3.5 l
• Oil content in compressed air: 2 - 4 mg/m3
• Motor speed: 1455 min-1
• Receiver volume: 270 l
• Outlet connection: G 1/2"
