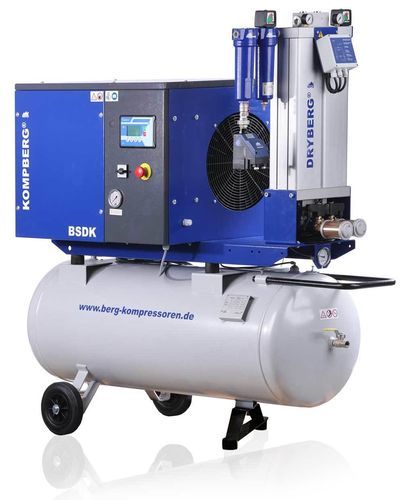

Air compressor KOMPBERG® BSDK5

electricstationaryoil-lubricated

Overview
The KOMPBERG® BSDK5 with integrated refrigeration dryer AD delivers high-quality, dry compressed air in a single, space-saving system. Designed with a robust, low-speed air end, this compressor provides quiet operation and long service life. The direct-drive electric motor is coupled to the main rotor without belts or gear transmission, minimizing energy loss and reducing routine maintenance compared with conventional belt-driven units. The built-in dryer efficiently removes moisture from the air stream, protecting downstream equipment and maintaining stable air quality without the need for a separate drying unit. Smart control options—ranging from pressure-based on/off regulation to advanced variable-speed adjustment—allow the machine to fine-tune output in real time for optimal efficiency and lower operating costs.

Key features

• Integrated refrigeration dryer AD for dry compressed air in a compact footprint
• Large low-speed air end for reduced noise and extended service life
• Direct-drive electric motor (no belts or gearbox) to minimize energy loss and maintenance
• Smart control options: on/off pressure control, suction regulator, or advanced continuous (variable-speed) regulation
• Low noise level compared with piston compressors and many competitors

Technical specifications

• Model: BSDK 5
• Operation overpressure [bar] min-max: 5 - 9
• Free air delivery [m3/min]: 0.8
• Ambient temperature: +5°C … +40°C
• Voltage / Frequency: 400 V / 50 Hz
• Air end: BERG B 100
• Noise level [dB(A)]: 64 - 69
• Electric motor protection class: IP 55‑F
• Weight receiver mounted [kg]: 300
• Dimensions receiver mounted (LxWxH) [mm]: 1498 x 641 x 1245
• Nominal motor power [kW]: 5.5
• Rated current [A]: 12.1
• Oil filling [l]: 3.5
• Oil content in compressed air [mg/m3]: 2 - 4
• Electric motor speed [min-1]: 1455
• Receiver [l]: 270
• Outlet: G 1/2"
