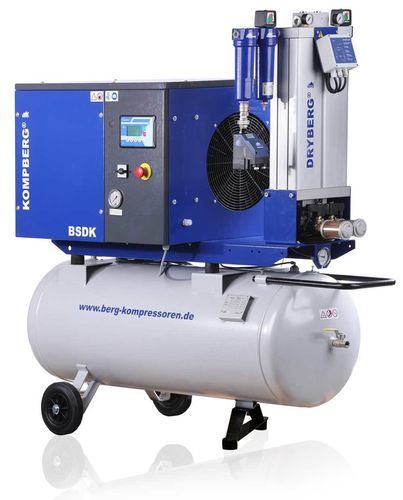

Screw compressor KOMPBERG® BSDK7

airelectrically-poweredstationary

Overview
The BERG screw element is robustly constructed and equipped with a running reserve. Models BSDK5–BSDK7 operate at very low speeds and therefore run quietly. Units can be used without a canopy; the open version provides excellent service access.

Technical data

• Model: BSDK 7
• Product type: Stationary screw compressor
• Operating overpressure (bar) min–max: 5 - 9
• Delivery rate (m3/min) [5-9 bar]: 1.0
• Ambient temperature: +5°C ... +40°C
• Voltage / Frequency: 400 V / 50 Hz
• Airend: BERG B 100
• Sound level [dB(A)]: 64 - 69
• Motor protection class: IP 55‑F
• Weight mounted on receiver [kg]: 260
• Page metadata weight [kg]: 295
• Dimensions mounted on receiver (L×W×H) [mm]: 1498 x 641 x 1245
• Motor rated power [kW]: 7.5
• Rated current [A]: 15.1
• Oil fill [l]: 4
• Oil content in compressed air [mg/m3]: 2 - 4
• Motor speed [min-1]: 1455
• Receiver [l]: 270
• Outlet: G 1/2"
• Product number / SKU: 1421100107
• Manufacturer: BERG Kompressoren GmbH

Documents and downloads
Datasheet and operation/maintenance manual available in PDF (see Downloads section on the product page).

Features / technical highlights

• Low-speed compression element for reduced noise and extended service life

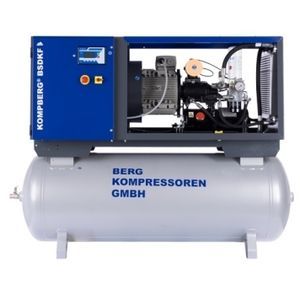

• Open version (without canopy) available for improved service access
• Robust BERG screw element with running reserve
• Suitable for ambient temperatures from +5°C to +40°C
