Hot-wire cutting machine CREAM 200for foamfor EPSfor extruded polystyrene
Add to favorites
Compare this product
Characteristics
- Technology
- hot-wire
- Material
- for foam, for EPS, for extruded polystyrene
- Product handled
- for foam panels
- Control type
- CNC
- Phase
- single-phase
- Configuration
- compact, 2-axis
- Other characteristics
- turntable
- X travel
2,500 mm
(98.43 in)- Y travel
1,050 mm
(41.34 in)- Z travel
1,800 mm
(71 in)- Cutting speed
10 m/min
- Repeatability
0.05 mm
(0.002 in)- Overall length
2,500 mm
(98 in)- Maximum width
1,050 mm
(41 in)- Height
1,800 mm
(71 in)- Power supply
220 V, 230 V
Description
Short description

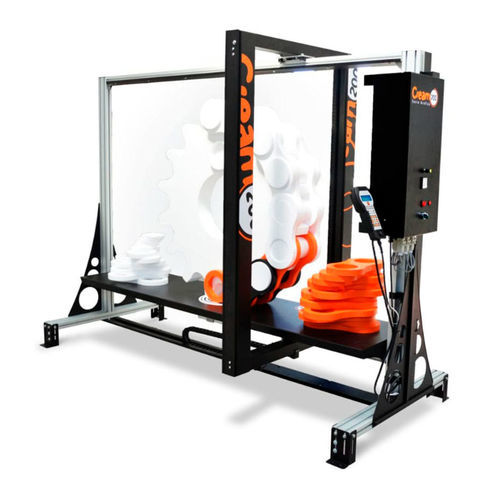

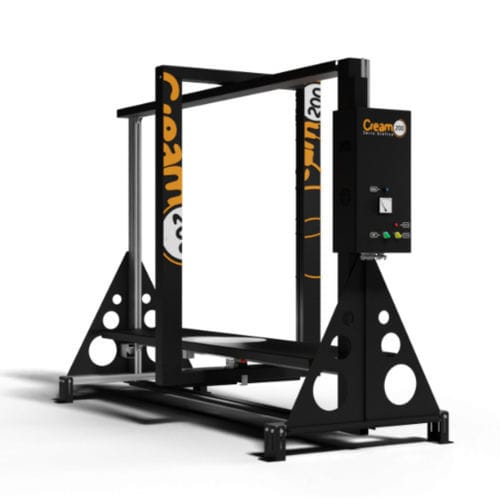

The CREAM 200 hot wire cutting machine is a compact CNC system for cutting polystyrene (EPS/XPS) and rigid foam. Manufactured by Nettuno Sistemi, it is designed for visual communication, signage and model-making workshops that require precise 2D and 3D foam shaping with a small footprint and simple operation.
Applications
Materials
Highlights
Technical characteristics
The CREAM 200 hot wire cutting machine is a compact CNC system for cutting polystyrene (EPS/XPS) and rigid foam. Manufactured by Nettuno Sistemi, it is designed for visual communication, signage and model-making workshops that require precise 2D and 3D foam shaping with a small footprint and simple operation.
Applications
- Signage, lettering and POS displays
- Scenography, theatre and film sets
- Event and exhibition decorations
- Architectural models, prototypes and moulds
- 3D objects, figures and decorative elements
- Shop windows and trade show exhibits
Materials
- EPS (expanded polystyrene)
- XPS (extruded polystyrene)
- Rigid foam panels
Highlights
- Cutting technology: Hot wire system for clean, precise 2D and 3D cuts in foam materials.
- Axes and turntable: 2-axis gantry with standard vertical turntable to produce complex geometries and three-dimensional shapes.
- Software: Nettuno Cutter Cad/Cam included for advanced nesting and toolpath generation.
- Usability: Small, plug & play configuration with intuitive controls; handheld controller included.
- Construction: Powder-coated steel frame with recirculating ball bearing guides for accurate motion.
Technical characteristics
- Manufacturer: Nettuno Sistemi (machine manufactured by Nettuno Sistemi; BERMAQ official distributor)
- Model: CREAM 200
- Overall dimensions: 2.500 x 1.050 x 1.800 mm
- Cutting area: X = 2.000 mm · Y = 1.250 mm
- Table top: Steel
- Cutting wire length: 700 mm
- Axes speed: 10 m/min
- Axes configuration: 2-axis + vertical turntable (standard)
- Accuracy / positioning: +/- 0.05 mm
- Cutting wire: Titanium, diameter 0.20 mm
- Wire tensioner: Spring-loaded
- Wire temperature control: External potentiometer with display
- Processable materials: EPS / XPS / Rigid foam
- Motors: Stepper motors
- Transmission: Recirculating ball guides and drive assemblies
- Handheld controller: Included
- Operator interface: Nettuno Cutter
- 3D preview: Not supported
- Corel Draw license: Included
- Power supply: 220/230 V
