Hot-wire cutting machine SNIPER

for EPSfor foam panelsblocks

Description

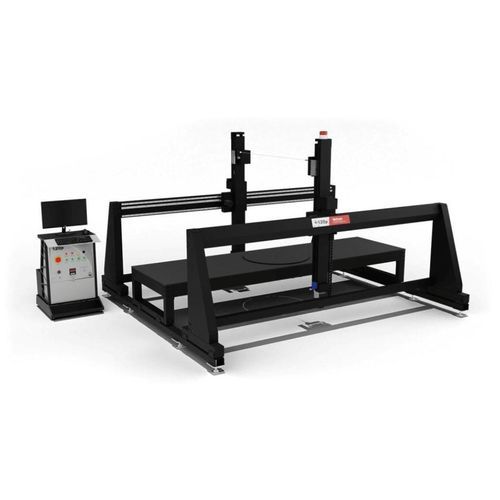

The SNIPER series by Nettuno Sistemi is an industrial line of CNC hot-wire foam cutting machines suited for high-volume production. Available models: Sniper 120P, Sniper 400I and Sniper Infinity. Main frame in large anodised aluminium and steel profiles; table top in high-density compact fibreboard. Configurable with optional tools for complex shapes and production workflows.

Applications

• Construction and architecture
• Displays, POS and exhibition stands
• Scenography and set design
• Interior design and furniture prototyping
• Moulds and models manufacturing
• Signage and lettering

Materials

• EPS (expanded polystyrene)
• XPS (extruded polystyrene)
• Rigid foam and specialty foams

Key features

• High-precision cutting: electronically controlled hot wire for smooth, low-residue cuts in low-density foams.
• Intuitive control: Nettuno Cutter interface with handheld controller for fast setup and complex path programming.
• Multiple models: different cutting capacities to match block sizes and production volumes (Sniper 120P, Sniper 400I, Sniper Infinity).
• Robust structure: anodised aluminium and painted steel profiles with high-density compact panel table top for stable processing.
• Automatic wire tensioning: Nettuno tensioner available on Infinity; external potentiometer for wire temperature control.

Benefits

• Reduced waste: hot-wire cutting melts material, minimising dust and offcuts.
• Versatility: suitable for large industrial production and intricate shapes for display or prototyping.
• Energy efficiency: optimised design for consistent performance with controlled energy consumption.

Technical characteristics (summary)

• Series / model name: SNIPER (Sniper 120P, Sniper 400I, Sniper Infinity)
• Overall dimensions: 4,200 x 3,200 x 2,050 mm
• Cutting area (X × Y × Z): 2,620 mm × 1,250 mm × 2,500 mm
• Table top: Sliding – Compacmel Plus (composite wood)
• Cutting wire length: 2,500 mm
• Axes speed: 13 m/min
• Number of axes: 4 independent (model dependent)
• Accuracy: +/- 0.05 mm
• Cutting wire type: Titanium
• Wire tensioner: Automatic (Nettuno tensioner on Infinity)
• Wire temperature adjustment: External potentiometer
• Cutting wire diameter: 0.25 – 0.50 mm
• Processable materials: EPS / XPS / Rigid foam
• Motors: Servo
• Transmission: X racks; Y screws – both with ball bearing guides
• Handheld controller: Included
• Operator interface: Nettuno Cutter
• Power supply: 220/230V 50/60Hz
• 3D Preview: Not available (standard)
• Corel Draw License: Not included
• Optional accessories: Vertical turntable, horizontal turntable, carver, multiwire harp, Clevelin, mitre saw
