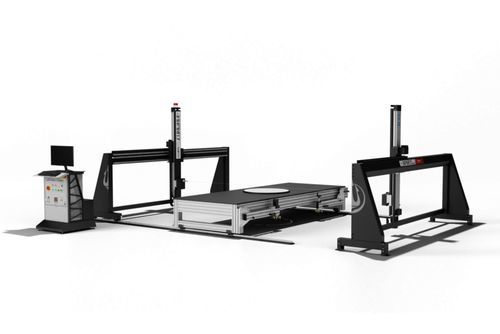

Hot-wire cutting machine INFINITY SNIPER

for polystyrenepanelfor door

Description
The INFINITY SNIPER is a CNC hot wire cutting machine for polystyrene processing, equipped with 4 independent axes and compatible with accessories such as horizontal lathe, vertical turntable and carver. Smooth motion on recirculating ball guides and precision spindles ensures high accuracy for detailed and large-scale 3D shapes.

Applications

• Construction and building: insulation panels, suspended ceilings, formwork, mouldings
• Thermal insulation: production of blocks and panels for energy efficiency
• Windows and doors: insulating components and customised profiles
• Exterior and interior decoration: façade and interior mouldings
• Displays and POS
• Events and scenography: large letters, logos and set elements
• Interior design and furniture components
• Signage and lettering
• Green energy: thermally optimised insulating structures
• Packaging: customised protective packaging

Key functional features

• 4 independent axes (expandable with accessories)
• PC-controlled automatic wire tension system developed by Nettuno Sistemi
• Microprocessor temperature control for the cutting wire
• Sliding mobile table for easy loading of EPS/XPS blocks and extendable working area for cuts beyond 4 m
• Accepts cutting wire diameters 0.25–0.50 mm; titanium wire recommended
• Smooth motion via recirculating ball guides and precision spindles; servo motor drive; rack and ball guide transmission
• Capable of conical cuts, spheres, twisted columns and complex 3D shapes with ±0.05 mm accuracy

Accessories included

• Carver
• Vertical turntable
• Horizontal turntable
• Handheld keyboard
• Software (Corel Draw license included)
• Workstation

Optional accessories

• Clevel
• Multi-row harp

Technical specifications

• Overall dimensions: 6,000 x 3,100 x 2,000 mm
• Cutting area: X 2,620 mm | Y 1,250 mm | Z 1,300 → 4,200 mm
• Table top: Sliding table Compacmel Plus (composite wood)
• Cutting wire length: 1,300 → 4,200 mm
• Axis speed: 13 m/min
• Number of axes: 6 independent (configurable)
• Accuracy: ±0.05 mm
• Cutting wire type: Titanium
• Wire tensioner: Automatic
• Wire temperature control: Microprocessor, automatic
• Cutting wire diameter: 0.25 - 0.50 mm
• Processable foams: EPS, XPS, rigid foam
• Motors: Servo motors
• Transmission: Racks and ball guides
• Handheld controller: Included
• Structure: Anodised aluminium / steel
• Power supply: 220/230V 50/60Hz
• Operator interface: Nettuno
• 3D preview: Not available
