Power take-off for heavy-duty applications 102K_03

Description

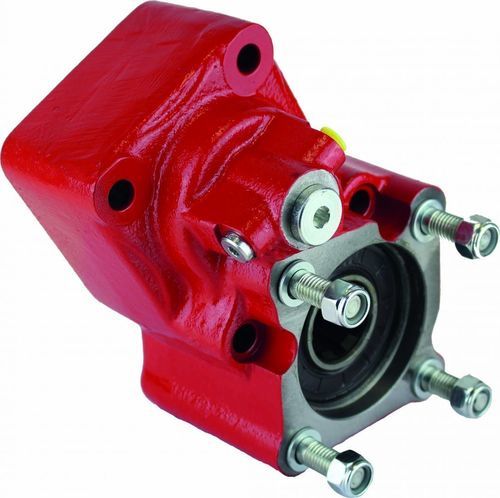

Rear PTO 102K_03 for rear mounting with an additional fifth support bolt to improve support of heavy pumps (compatible with ZF Ecosplit, Astronic and TraXon) via integrated flanges. Pneumatic shifting; ISO 4-bolt rotated pump output; clockwise pump rotation.

Internal Ratio / Performance
Internal Ratio | 1: 1.8 | 1: 1.5 | 1: 1.3
Max. Torque (Continuous) | 350 | 400 | 450
Max. Torque (Intermittent) | 490 | 560 | 630
Power (1000 r.p.m.) | 75 hp // 56 kW | 85 hp // 64 kW | 96 hp // 72 kW

Attachment 1 — Gearbox to PTO Ratio Examples
Examples from product tables (selected): GEARBOX S5-50: 5.30 -> 1.175; 5.50 -> 1.107; 6.20 -> 0.981; 6.61 -> 0.918; 8.02 -> 0.76. GEARBOX S6-65: 6.37 -> 1.17; 6.70 -> 1.116; 7.40 -> 1.012; 9.00 -> 0.832. Additional S6 series and GV/GPA combinations are listed in the full attachment tables.

Attachment 2 — Gearbox to PTO Ratio Examples
Alternate ratio set (selected): GEARBOX S5-50: 5.30 -> 1: 0.979; 5.50 -> 1: 0.923; 6.20 -> 1: 0.818; 6.61 -> 1: 0.765; 8.02 -> 1: 0.633. GEARBOX S6-65: 6.37 -> 1: 0.975; 6.70 -> 1: 0.93; 7.40 -> 1: 0.843; 9.00 -> 1: 0.693. See full tables for all gearbox variants.

Attachment 3 — Gearbox to PTO Ratio Examples
Third ratio set (selected): GEARBOX S5-50: 5.30 -> 1: 0.849; 5.50 -> 1: 0.800; 6.20 -> 1: 0.709; 6.61 -> 1: 0.663; 8.02 -> 1: 0.549. Additional S6-series examples and GV/GPA combinations are available in the product documentation.

Notes and Additional Tables
The product page contains extensive tabulated gearbox-to-PTO ratio data covering many gearbox models (S5-50, S5-90GP, S6-65, S6-66, S6-70, S6-75, S6-80, S6-90 and multiple sub-variants). Tables show high/normal/low ratio variants and specific combinations (e.g. with GV/GPA codes) to select the correct PTO ratio for a given gearbox configuration.

Technical specifications

• Mounting Position: Rear
• Pump rotation: Clockwise
• Weight (Kg): 11.45
• Old Codes: 1029002, 1029102, 1029202, 1029003, 1029103, 1029203
• Typical gearbox examples listed in tables: S5-50 (5.30, 5.50, 6.20, 6.61, 8.02), S5-90GP, S6-65 (6.37, 6.70), S6-70 (6.8, 7.36, 7.92, 9.03), S6-80, S6-90 and variants
• Note A: Air connection, thread 1/8" BSP
• Note B: Rotation (reference)
• Note C: Oil drain plug
• Note D: Passing contact switch (9024999)
• Note E: Pressure switch P/N 100070018
• Pump interface: ISO 4-bolt rotated pump output (integrated flanges supporting heavy pumps)
