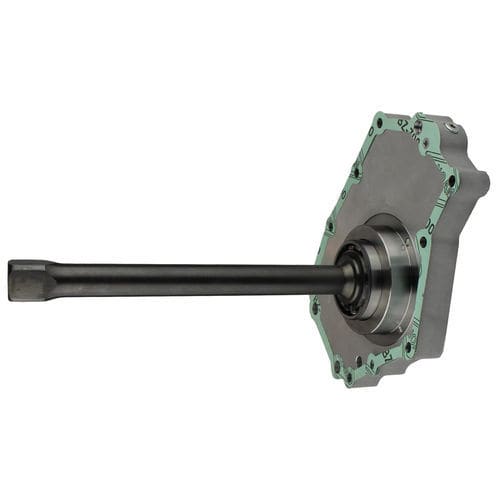

Adaptator kit Adapter Kit for Navistar International T14

Overview Upgrade the Navistar International T14 transmission using the Bezares SA Adapter Kit. The kit enables connection of reduced-profile base PTOs to the T14 transmission, providing a compact power take-off interface suitable for heavy-duty applications.

Key Features

• Wide compatibility: Interfaces with a broad range of reduced-profile base PTO models to simplify parts selection.
• Precision fit: Precision-machined mating surfaces ensure a secure seal to minimize leak risk and preserve transmission performance.
• Operational efficiency: Restores and extends PTO functionality on T14 transmissions to support diverse work cycles and increase fleet uptime.
• Heavy-duty construction: Engineered for demanding operating conditions to maintain service life and reliability.
• Quick installation: Designed for straightforward mounting and alignment to reduce installation time.

Notes on ratios (example) To obtain the correct final ratio, multiply the adapter ratio by the internal ratio of the chosen reduced-profile base PTO.
Example: Adapter Kit Navistar International T14 + Base PTO (P/N 1010K03-1):
Internal ratio 1:1.32
Final Ratio: High 0.97 x 1.32 = 1.28
Normal 0.76 x 1.32 = 1.00

Warning / Optional activation kit Installation of the optional activation kit requires the following Scania original parts:

• P/N 2721166 – Piston
• P/N 2523709 – O-ring
• P/N 2301052 – O-ring
• P/N 3007639 – Sensor

Technical specifications

• SKU: 096004
• Weight: N/A
• Compatible gearboxes: G33, G25CM, G25CM (with retarder), G33 (with retarder), T14, T14 (with retarder)
• Max. torque (Nm): 1000
• Power (1000 r.p.m.): 142 CV // 107 kW
• Engine to PTO ratio: High 1: 0.97; Low 1: 0.76
• Retarder: configurable (yes / no)
• Product type: Adapter kit to connect reduced-profile base PTOs to Navistar International T14 transmission

Documents available Technical datasheet (PDF) and mounting instructions (PDF) are provided.
