Power take-off for heavy-duty applications 11107K

for truckshigh-torque

Product overview
The Bezares 11107K is a triple Power Take-Off (PTO) engineered for direct integration with Volvo I-Shift and Mack M-Drive transmissions. It provides three independent outputs with defined rotation directions and torque/power ratings suitable for heavy-duty vehicle hydraulic systems.

Key features

• Triple Power: Three power outputs to drive multiple hydraulic pumps or auxiliary systems simultaneously.
• Precision engineering: Durable construction and materials designed for continuous operation in demanding environments.
• Seamless integration: Direct fitment to Volvo I-Shift and Mack M-Drive transmissions to preserve drivetrain alignment and simplify installation.
• Versatile applications: Intended for dump trucks, concrete mixers, fire trucks and other commercial vehicles requiring multiple hydraulic functions.
• Operational efficiency: Optimized power distribution and smooth engagement to reduce downtime and maintenance needs.
• Safety and reliability: Design incorporates measures to help prevent accidental engagement and protect operators.

MAIN DATA
Shaft 1 — Shaft 2
Max. Torque (Nm): Shaft 1 — 450 Nm; Shaft 2 — 500 Nm
Power @ 1000 r.p.m.: Shaft 1 — 64 C.V // 48 kW; Shaft 2 — 71 C.V // 53 kW
Pump rotation:
Output 1 — ClockWise
Output 2 — Anti ClockWise
Output 3 — ClockWise
Engine to PTO ratio: Attachment

GENERAL DATA
Weight (Kg): 30
Mounting side: Rear
Maximum torque when 2 or more outputs operate simultaneously: 500 Nm
Power outputs greater than 75 kW require an oil cooler

Attachment (Gearbox ratios)
GEARBOX — SHAFT 1 — SHAFT 2
R1000 — 0,59 — 1,29
R1400 — 0,59 — 1,29
R1700 — 0,59 — 1,29
SR1400 — High 0,74 — 1,62 ; Normal 0,59 — 1,29
SR1700 — High 0,74 — 1,62 ; Normal 0,59 — 1,29
SR1900 — High 0,74 — 1,62 ; Normal 0,59 — 1,29
SR2000 — High 0,69 — 1,5 ; Normal 0,54 — 1,19
SRO2400 — High 0,86 — 1,89 ; Normal 0,68 — 1,5
VT1708 — 0,59 — 1,29
VT2009B — 0,59 — 1,29
VT2014B — High 0,74 — 1,62 ; Normal 0,59 — 1,29
VT2214B — High 0,74 — 1,62 ; Normal 0,59 — 1,29
VT2412B — High 0,76 — 1,66 ; Normal 0,59 — 1,29
VT2514B — High 0,74 — 1,62 ; Normal 0,59 — 1,29
VTO2214B — High 0,92 — 2,01 ; Normal 0,73 — 1,62
DT-2412C — Normal 0,59 — 1,29 ; High 0,74 — 1,61
V2412AT — Low 0,59 — 1,29 ; High 0,76 — 1,66
V2512AT — Low 0,59 — 1,29 ; High 0,76 — 1,66
VT2812AT — Low 0,59 — 1,29 ; High 0,76 — 1,66
VO2512AT — Low 0,76 — 1,66 ; High 0,97 — 2,12
VO3112AT — Low 0,76 — 1,66 ; High 0,97 — 2,12
AT-2412C/D — Low 0,59 — 1,29 ; High 0,76 — 1,66
AT-2512C — Low 0,59 — 1,29 ; High 0,76 — 1,66
AT-2612D/E — Low 0,59 — 1,29 ; High 0,76 — 1,66
AT-2812C/D — Low 0,59 — 1,29 ; High 0,76 — 1,66
ATO-2512C — Low 0,76 — 1,66 ; High 0,97 — 2,12
ATO-2612D — Low 0,76 — 1,66 ; High 0,97 — 2,12
ATO-3112C — Low 0,76 — 1,66 ; High 0,97 — 2,12

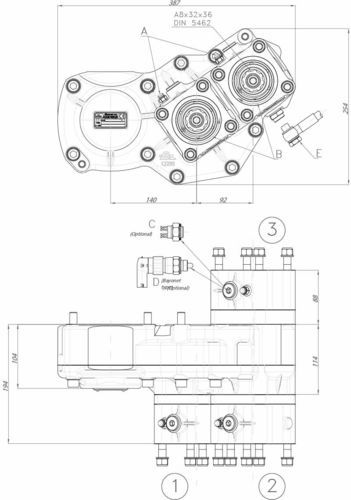

Additional information / Notes

• Note A: Air connection, thread 1/8" BSP
• Note B: Rotation
• Note C: Pressure switch P/N (100070018)
• Note D: Passing contact switch (9024999)

Technical specifications

• Model: 11107K
• Manufacturer: Bezares
• Compatibility: Volvo I-Shift and Mack M-Drive transmissions
• Type: Triple PTO (three outputs)
• Max torque (individual outputs): Shaft 1 — 450 Nm; Shaft 2 — 500 Nm
• Power @ 1000 r.p.m.: Shaft 1 — 64 C.V // 48 kW; Shaft 2 — 71 C.V // 53 kW
• Weight: 30 kg
• Mounting side: Rear
• Pump rotation by output: Output 1 ClockWise; Output 2 Anti ClockWise; Output 3 ClockWise
• Maximum torque when 2 or more outputs operate simultaneously: 500 Nm
• Recommendation: Power outputs greater than 75 kW require an oil cooler
• Notes: Air connection thread 1/8" BSP; pressure switch and passing contact switch references available
